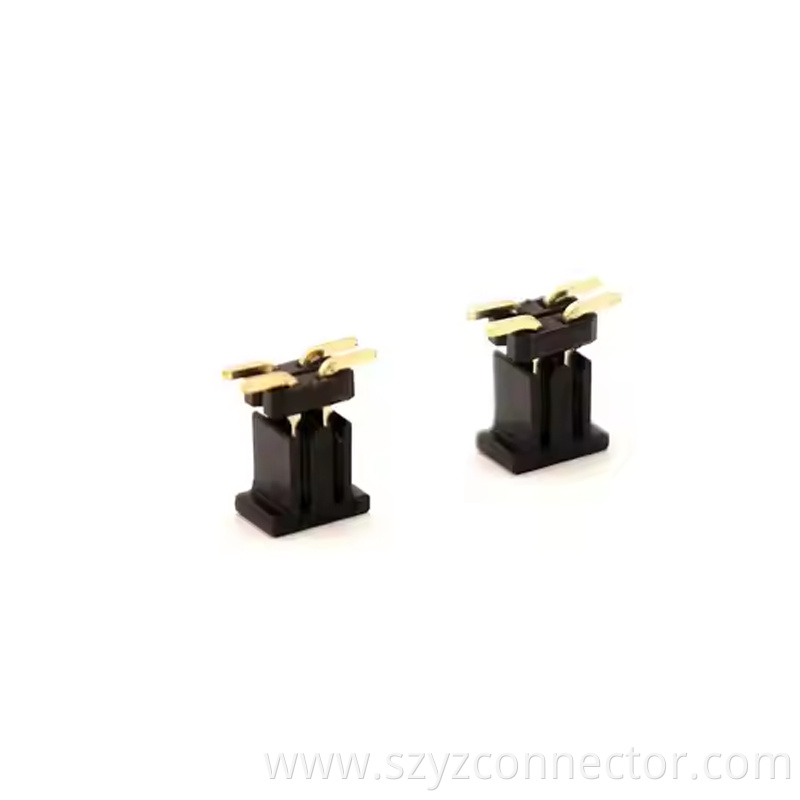

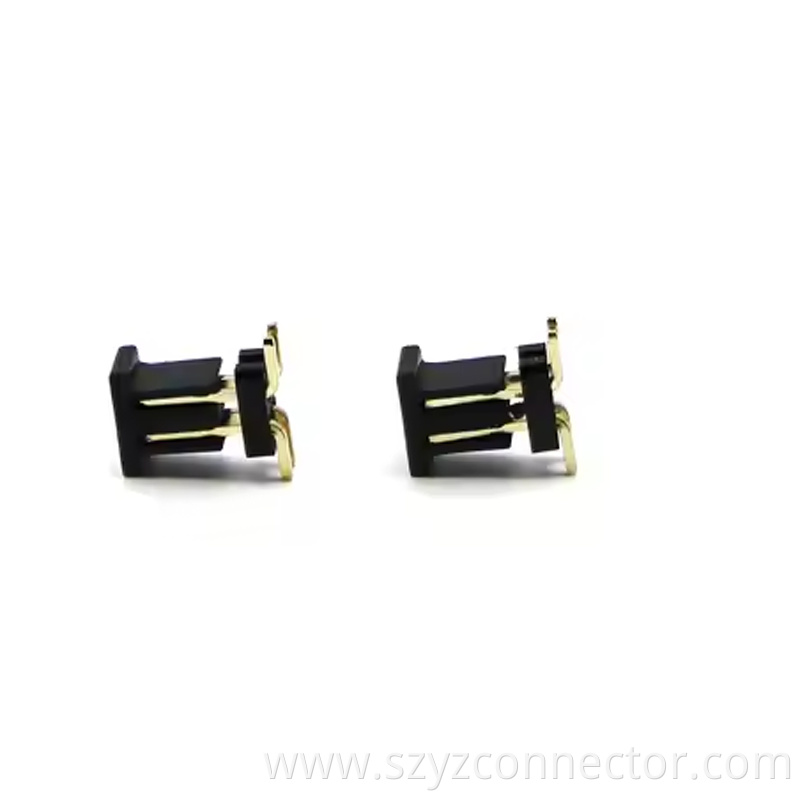

1.27mm Pin Header Dual Row SMT

yztech’s 1.27mm Pin Header Dual Row SMT is an innovative solution for high-density electronic connections, designed for compact PCB layouts and automated production. As a flagship model in the Pin Header series, its standard 1.27mm pitch and dual-row design perfectly meet the dense wiring needs of PCB Pin Header, doubling signal transmission efficiency compared to single-row structures and setting a benchmark for performance and reliability in the 1.27mm pitch header category.



Featuring SMT surface-mount technology, the connector supports fully automated pick-and-place production with positioning errors within 0.1mm, significantly enhancing assembly efficiency. High-quality C2680 phosphor bronze terminals (gold-plated) and black LCP (UL94V-0) insulators ensure stable 3A/pin current transmission from -40°C to +105°C, with contact resistance controlled below 20mΩ. The Gold Flash plating, combined with a ≥50u" nickel base, resists oxidation and ensures low-loss transmission of high-frequency signals. The 6-64 PIN configuration is compatible with Female Header Pins, widely used in consumer electronics, industrial motherboards, and communication devices. Certified to IPC-A-610 and RoHS-compliant, standard anti-static carrier tape packaging supports ODM/OEM customization to meet all-scenario connection needs for 1.27mm pin Header.
