0.8mm Pitch Board to Board Connector 22P

0.8mm Pitch Board to Board Connector 22P

Get Latest Price

Payment Type:	L/C,T/T,D/P,Paypal,others
Incoterm:	Express Delivery
Min. Order:	1000 Piece/Pieces
Transportation:	Ocean,Land,Air,Express
Port:	Shenzhen

Contact Now

Product Description

Product Attributes

Model No.: 070862

Brand: YZTECH

Origin: China

Certification: ISO9001:2015

Packaging & Delivery

Selling Units	:	Piece/Pieces
Package Type	:	Reel&Box Packaging

The file is encrypted. Please fill in the following information to continue accessing it

0.8BTB-22P male double slot with



Product Description

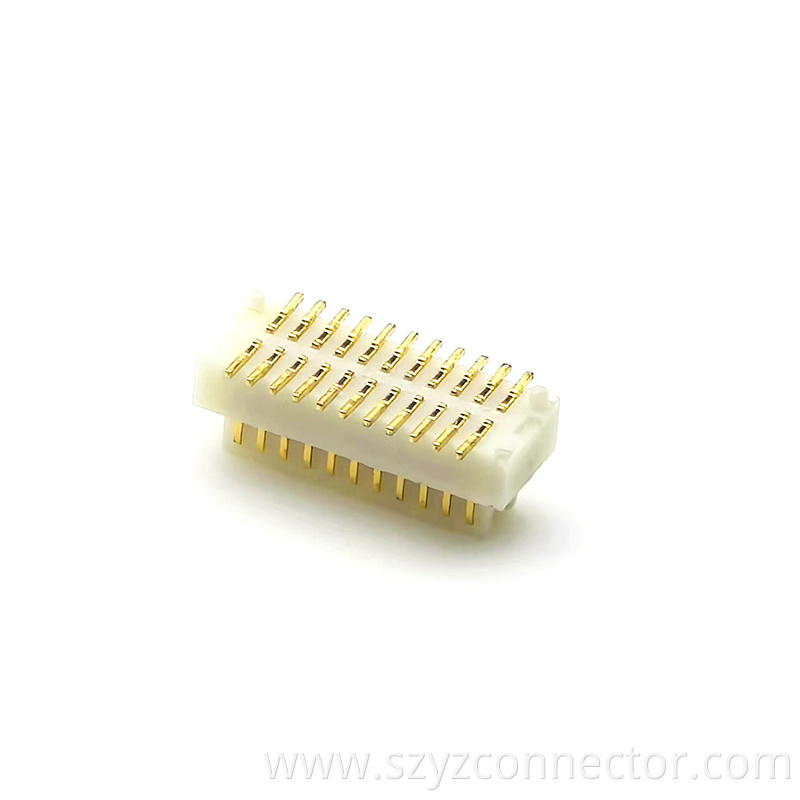

0.8mm Pitch Board to Board Connector 22P

The 0.8mm Pitch Board to Board Connector 22P with by yztech is a reliable choice for inter-board connections in medium-density electronic devices. Its 0.8mm pitch and 22-pin design balance transmission stability and space efficiency, suitable for smart home control modules and small industrial sensors. As a high-performance connector, the structural design of these 0.8mm male Board to Board Connectors references the industrial standards of board to board connector molex, with a double slot structure enhancing docking stability to prevent loosening.

The shell of these 0.8mm BTB Connectors 22p male, made of high-temperature resistant PBT material (UL94 V0 certified), operates stably at -40℃ to 125℃, fully meeting the requirements of board to board connector smt for surface mount technology and adapting to automated production lines. Unlike the vertical connection of board to board connector 90, it adopts a straight plug design, more suitable for planar wiring scenarios, and can be used with board to board coaxial connector to meet high-frequency signal transmission needs. Internal terminals are made of tin-plated phosphor bronze, with contact resistance as low as 10mΩ and plug life over 500 times, ensuring long-term reliable connection.

Whether building internal signal transmission networks or realizing mixed power and data transmission between boards, these 22p SMT Board to Board Connectors stand out for its excellent performance and compatibility.
