1.27mm SMT Board to Board Connector

Get Latest Price

Payment Type:	L/C,T/T,D/P,Paypal,others
Incoterm:	Express Delivery
Min. Order:	1000 Piece/Pieces
Transportation:	Ocean,Land,Air,Express
Port:	Shenzhen

Option:

Black 8-core 160P

Contact Now

Product Description

Product Attributes

Model No.: 070868

Brand: YZTECH

Origin: China

Certification: ISO9001:2015

Species: Other

Package: Tape &Amp; Reel (Tr)

Supply Type: Original Manufacturer

Place Of Origin: China

Packaging & Delivery

Selling Units	:	Piece/Pieces
Package Type	:	Box Packaging

The file is encrypted. Please fill in the following information to continue accessing it

8 × 20P Board to board connector



Product Description

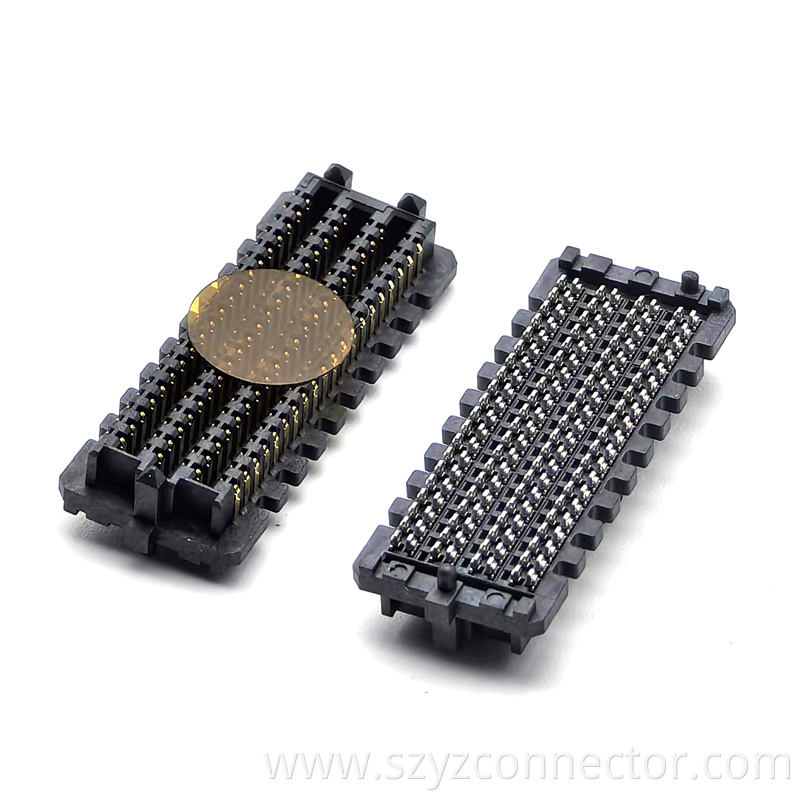

1.27mm SMT Board to Board Connector

The 8*20P Board to board connector launched by yztech is an efficient solution for multi-group signal parallel transmission in high-density electronic devices. Its 8-row and 20-pin design can build rich connection lines in limited space, suitable for industrial control motherboards, precision instrument modules and Other scenarios. The SMT Board to Board Connectors 160p adopt 1.27mm standard pitch, perfectly conforming to the wiring specifications of board to board connector 1.27 mm pitch, and is compatible with board to board connector 1.27 mm series products, facilitating system upgrading and component replacement.

The shell of 1.27mm Board to Board Connectors 160p is made of high-temperature resistant LCP material, which passes UL94 V0 fire certification and can work stably in the environment of -55℃ to 125℃. Its unique structural design enables it to be used with flexible board to board connector to meet the complex wiring needs inside the equipment, and it is also compatible with the installation method of board to board edge connectors, adapting to the edge connection scenarios of different PCB boards. The internal terminals are made of gold-plated phosphor bronze, with a contact resistance as low as 8mΩ and a plug-in life of more than 800 times, ensuring long-term stable transmission.

Whether building complex signal networks of multi-layer circuit boards or realizing multi-module interconnection of large equipment, these smt board to board connectors 160p stand out as the preferred choice with its excellent density advantage and reliable performance.
