2.0mm Pin Header Connector Single Row SMT

2.0mm pin header connector Single Row SMT

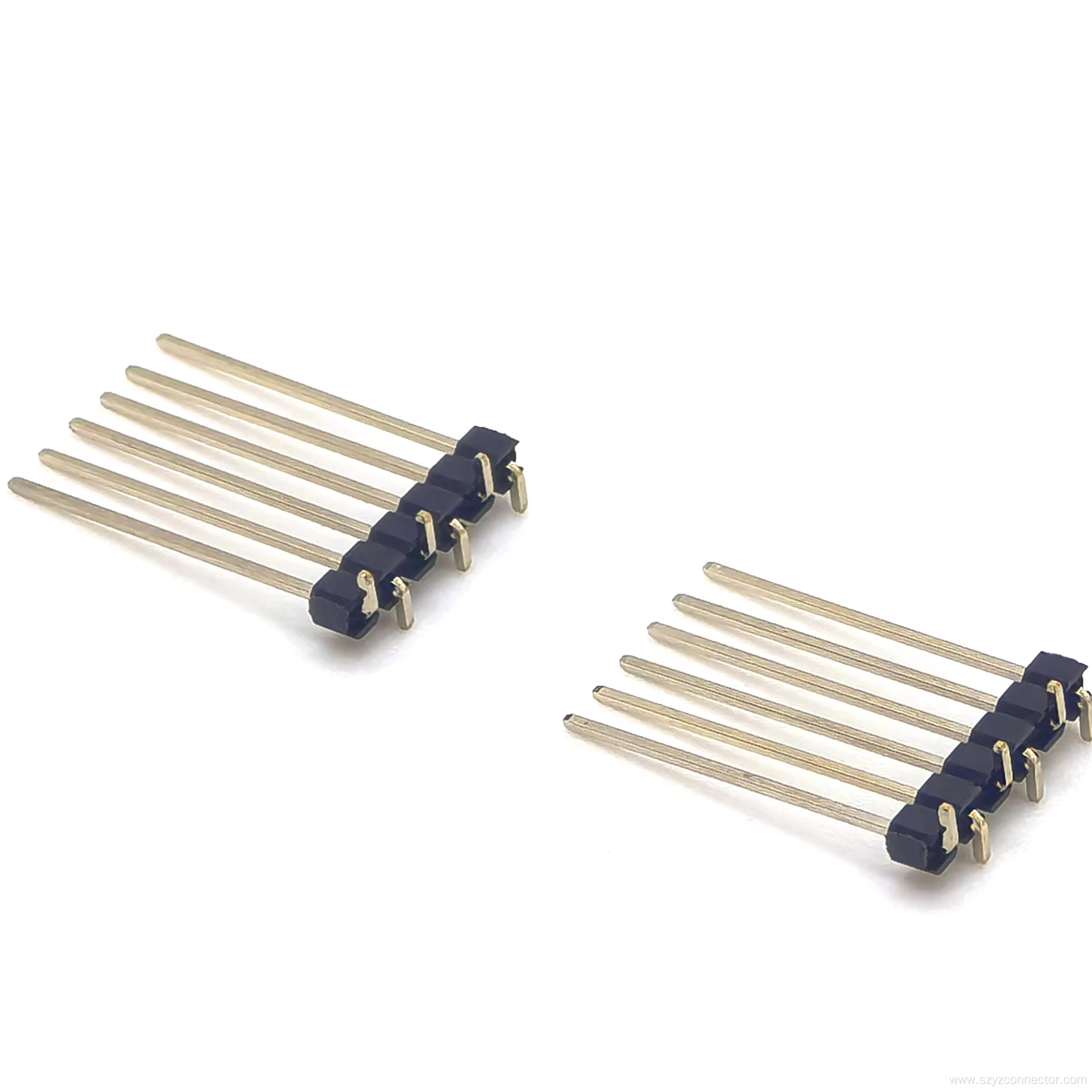

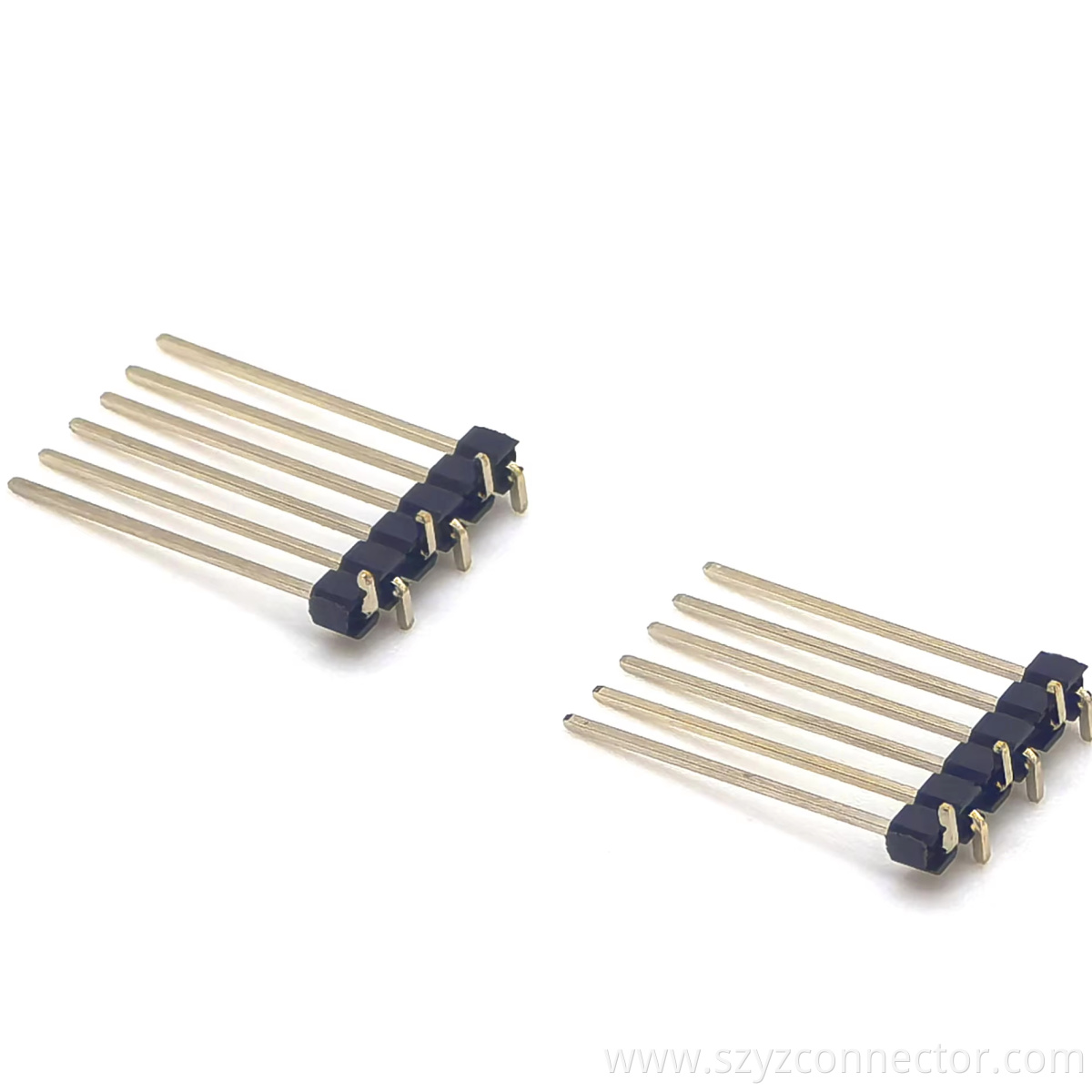

Elevate your PCB interconnect solutions with the YZTECH 2.0mm pin header connector Single Row SMT,engineered for reliable signal transmission in space-constrained electronics.This surface-mount 6p 2.0mm Pin Header features a horizontal mounting profile with a low 2.0mm height,making it ideal for slim devices where vertical clearance is limited.Designed as a single-row,6-position male rectangular header,it follows DIN-compatible interface standards,ensuring secure mating with corresponding female receptacles.Rated for 2A continuous current and 500V voltage,this header connector excels in control units,industrial instrumentation,and consumer appliances that demand stable performance across a wide temperature range from -40℃ to +105℃.You could find it in the 2.0mm Pin Header of the catalog.

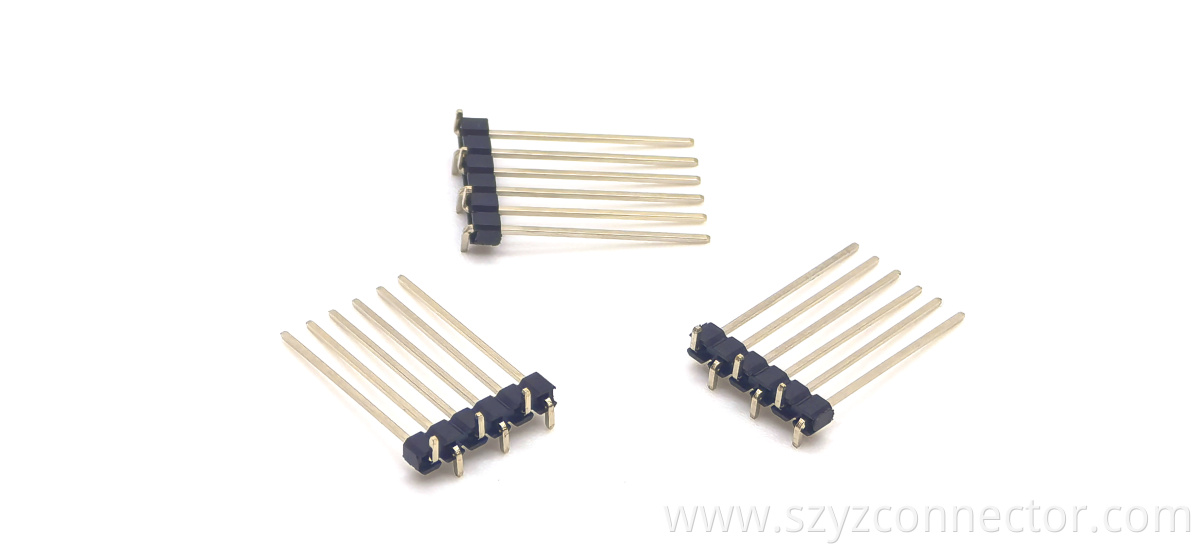

Built for durability and dependable electrical conductivity,the contact system uses brass alloy with a selective gold plating on the mating area and tin on the termination tails-a “half-gold tin” finish that prevents oxidation while supporting reliable soldering.The insulator housing is molded from PA6T,a high-heat engineering plastic that retains mechanical strength during reflow and wave soldering processes.This material also provides superior creepage resistance and dielectric strength for 500V operation.The 2.0mm pin header smt h2.0mm tolerates a maximum soldering temperature of 220℃ for up to 10 seconds,compatible with standard lead-free reflow profiles and manual touch-up procedures.

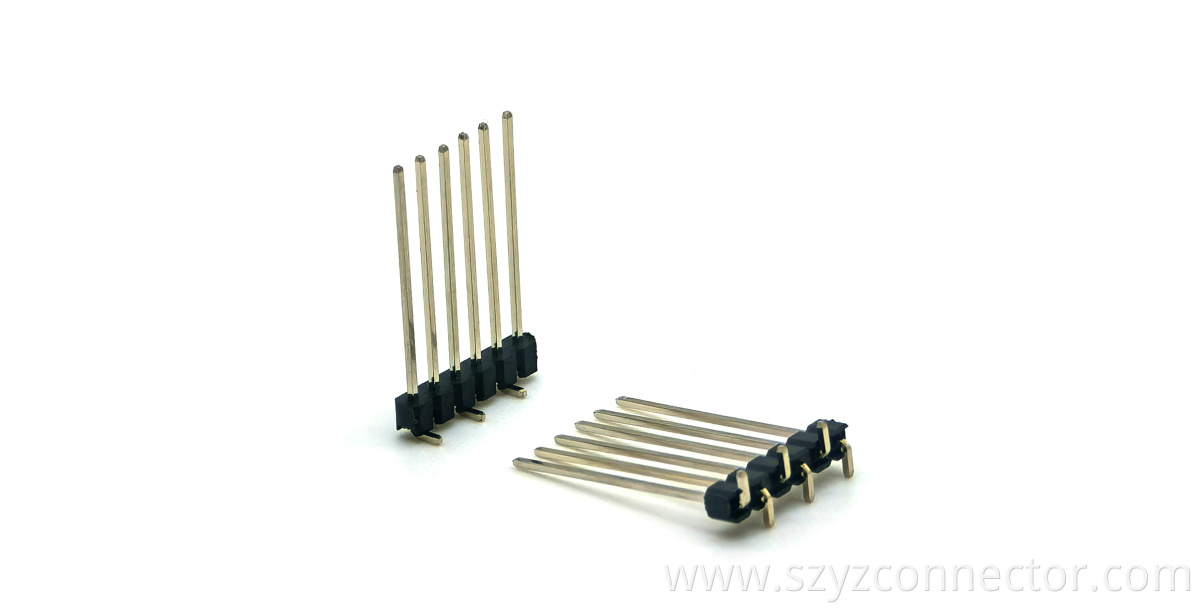

Each 2.0mm pin header connector 6p undergoes strict quality checks to guarantee consistent contact resistance and insertion/withdrawal forces.Ideal for PCB horizontal mounting in automated assembly lines,this SMD pin header supports pick-and-place operations thanks to its flat top surface and accurate coplanarity.
