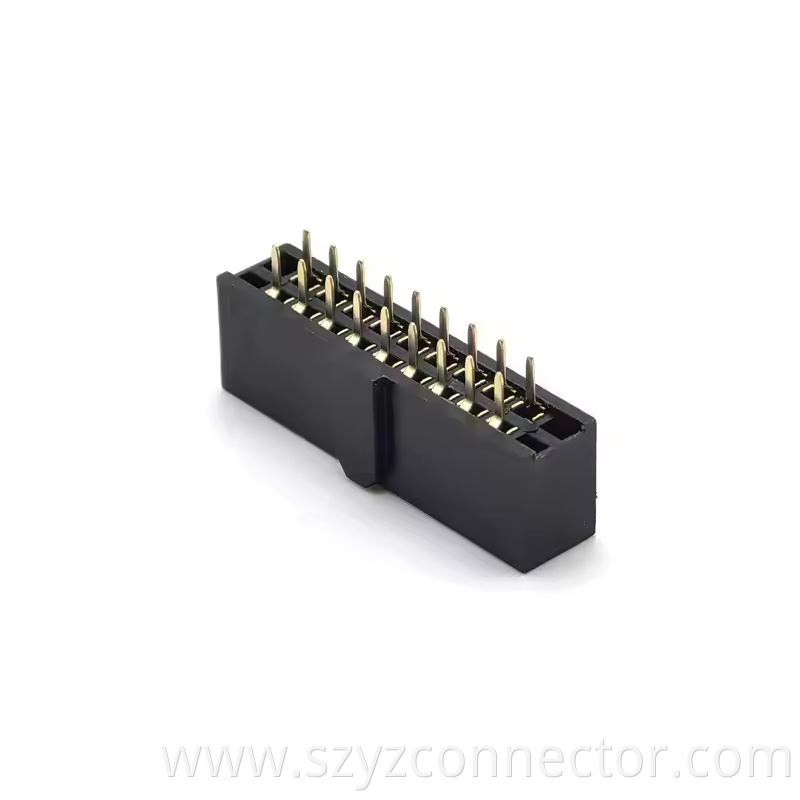

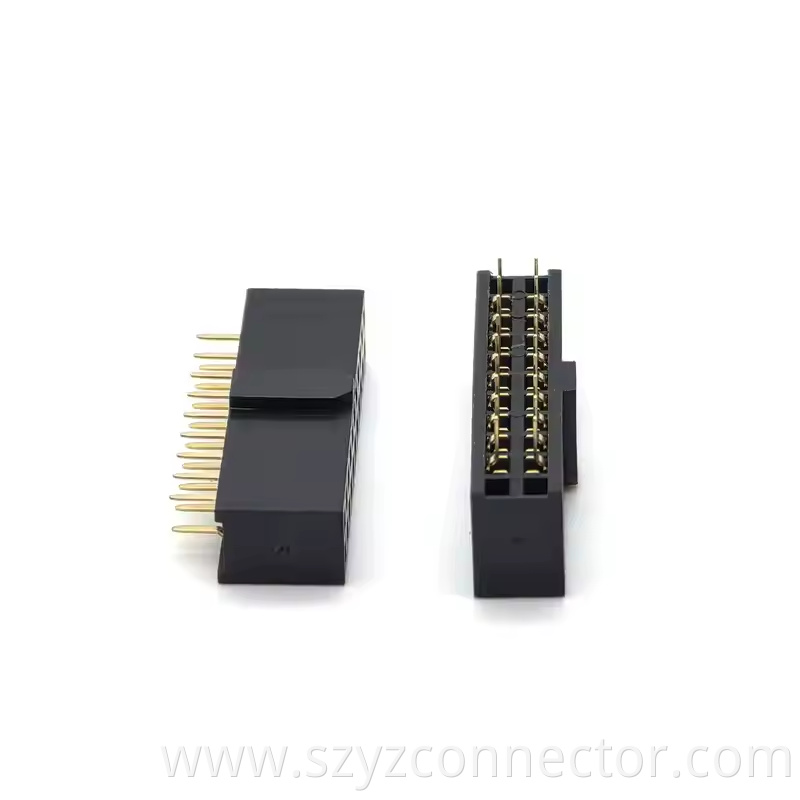

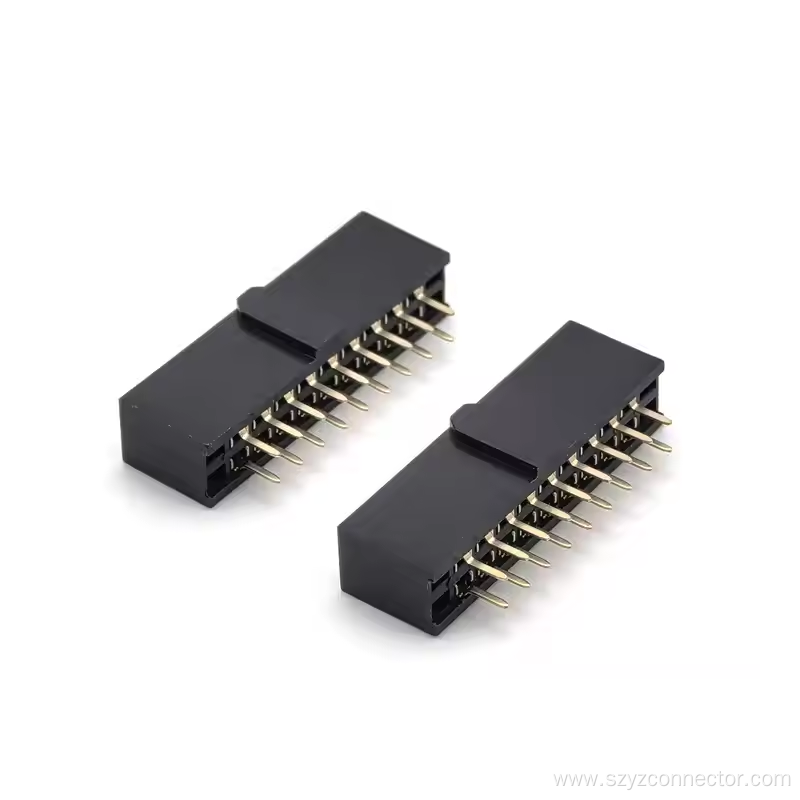

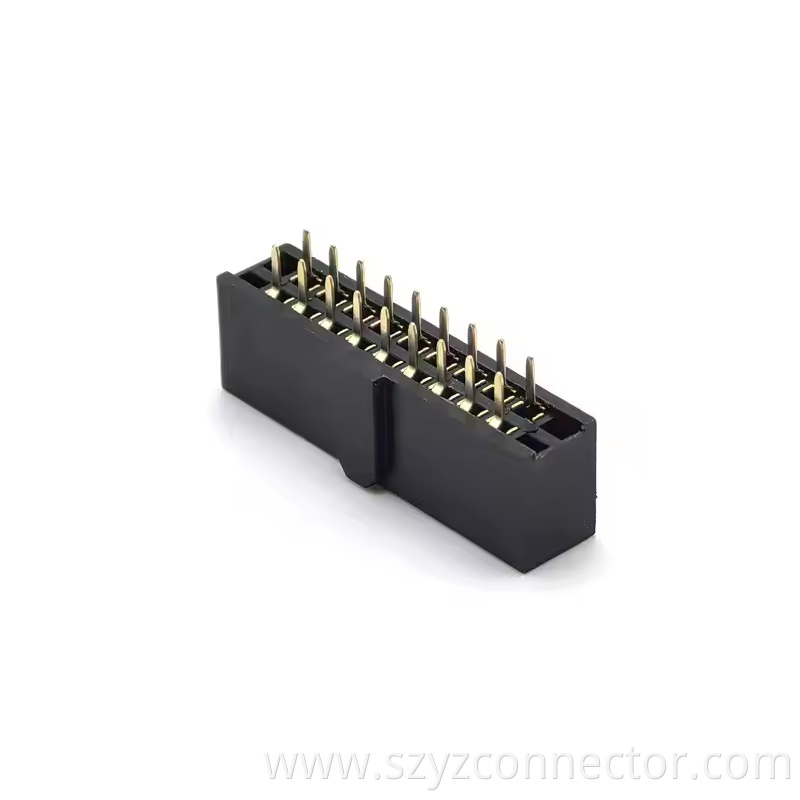

2.54mm Pitch Female Header U TYPE 29P

yztech’s 2.54mm Pitch Female Header U TYPE 29P is an innovative connection solution tailored for three-dimensional wiring and space optimization in electronic devices. As a star product in the 2.54 mm pitch female header series, its standard 2.54mm pitch and U-shaped design precisely meet the complex three-dimensional layout requirements of PCB boards, standing out in the 2.54 mm header category for its unique space utilization advantages and stable electrical performance.



This female header features high-purity phosphor bronze terminals (anti-oxidation hard gold-plated) paired with high-temperature-resistant PBT (UL94V - 0) insulation materials, stably carrying 3.5A current in environments ranging from -40°C to +125°C, with a contact resistance as low as 12mΩ. The high-density 29-pin configuration supports parallel transmission of multiple signals, and the U-shaped design enables 90° three-dimensional interconnection with female header and male female Pin Header, effectively saving PCB board space—especially suitable for compact smart devices and embedded systems. Meanwhile, its 2.54 right angle feature is compatible with right-angle installation, providing flexibility for special wiring scenarios. Customization services are available to adjust pin functions and U-shaped dimensions according to customer needs. Certified by ISO9001, ISO14001, and RoHS-compliant, anti-static carrier tape packaging provides personalized services, offering efficient and reliable solutions for various electronic connection projects.
