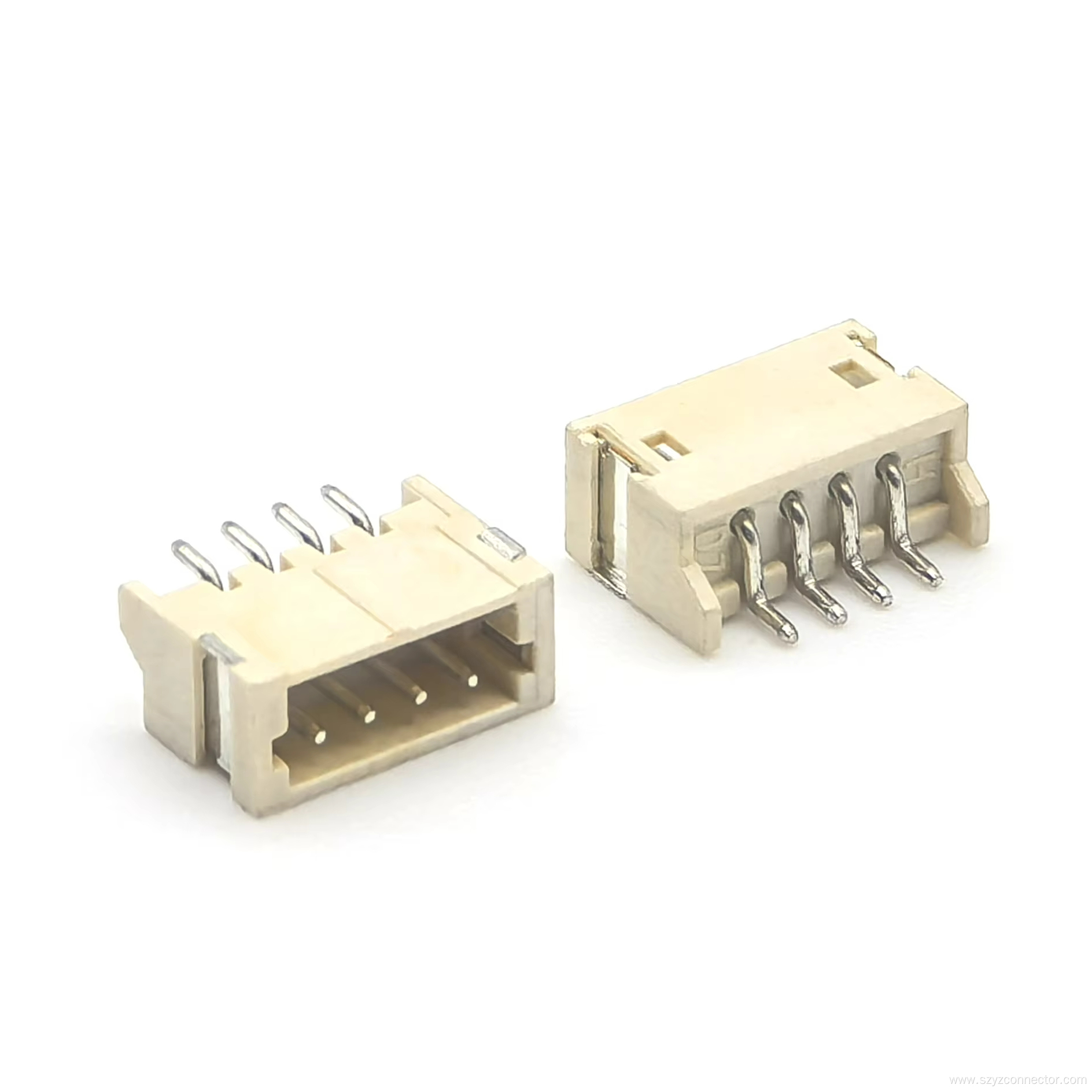

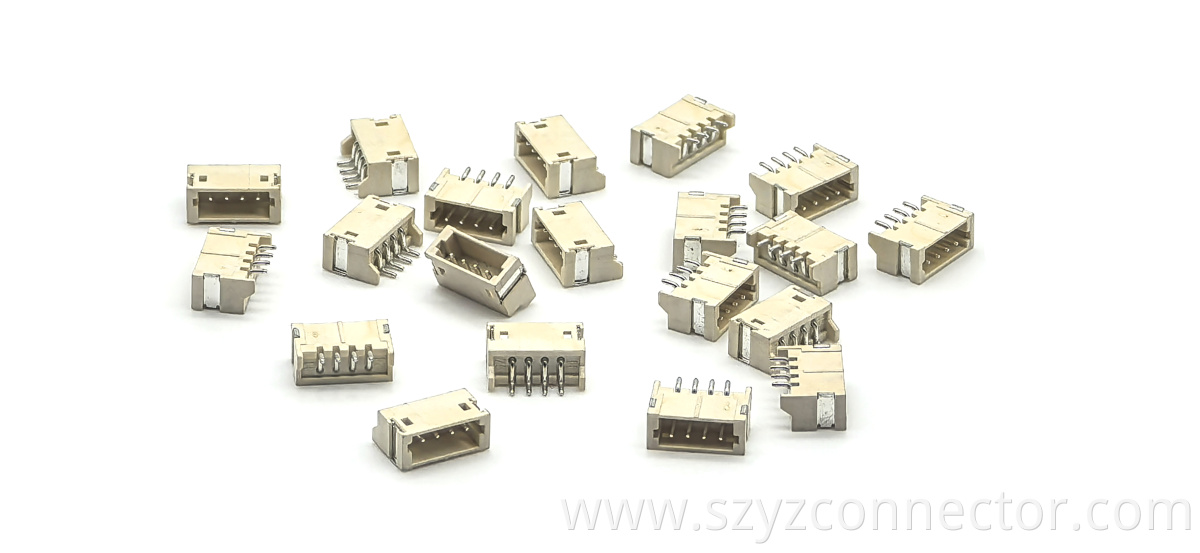

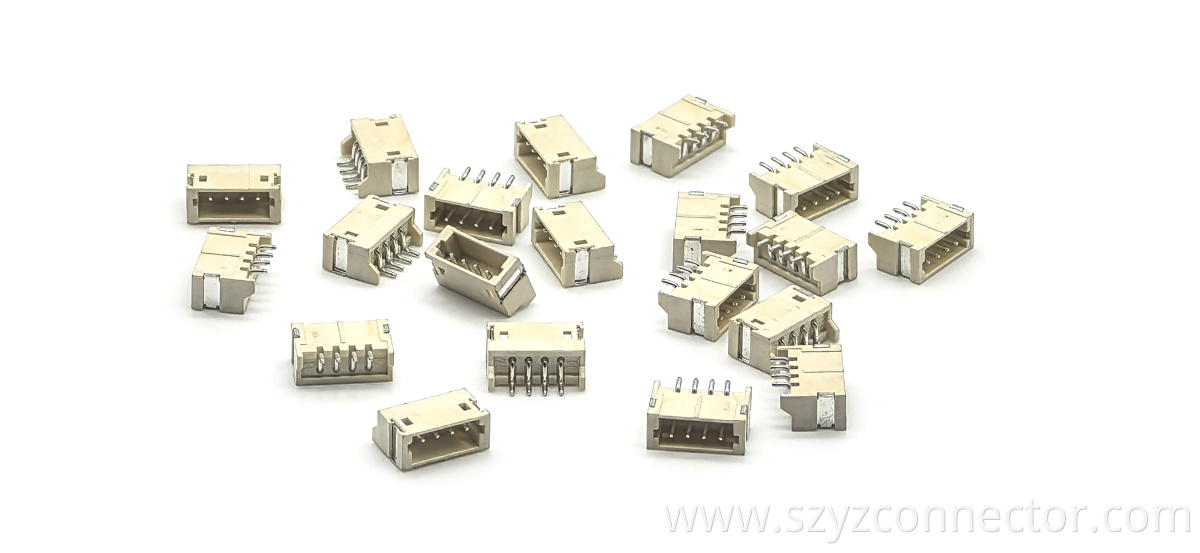

ZH1.5 Wafer SMT Pin header Connector

YZTECH introduces the ZH1.5 Horizontal SMT pin header connector, engineered for precision PCB applications. Its rectangular shape and horizontal orientation optimize space utilization on circuit boards, while the tin-plated brass contacts ensure reliable electrical conductivity and corrosion resistance. Rated for 1A current and 100V voltage, this connector withstands operating temperatures from -25℃ to +85℃, making it suitable for diverse environments. The PA6T colloidal material enhances durability, offering excellent heat resistance and mechanical stability.



The ZH1.5 header connector integrates cutting-edge materials and engineering to meet rigorous industry demands. Its brass contact base, coated with tin plating, provides low contact resistance and long-term reliability.The PA6T colloidal material—a high-performance thermoplastic—resists chemical degradation, thermal stress, and mechanical wear, ensuring consistent performance across extended lifecycles. With a single-row configuration of 4 pins, this connector simplifies PCB layout design while maintaining signal integrity. The reel packaging format aligns with global trade standards, facilitating seamless integration into automated manufacturing systems.



Its standardized DIN design ensures compatibility with global PCB specifications, reducing cross-border trade barriers. The reel packaging not only protects components during transit but also accelerates assembly line efficiency, crucial for high-volume production. YZTECH’s commitment to quality is reflected in stringent testing protocols, ensuring each Pin Header meets performance benchmarks for current, voltage, and thermal stability. With a focus on sustainability, the PA6T material is recyclable, aligning with global environmental regulations. Choose YZTECH ZH1.5 for a connector that balances technical precision, market adaptability, and long-term value.
