1.27mm Board to Board Connector 160P

Get Latest Price

Payment Type:	L/C,T/T,D/P,Paypal,others
Incoterm:	Express Delivery
Min. Order:	1000 Piece/Pieces
Transportation:	Ocean,Land,Air,Express
Port:	Shenzhen

Option:

Black 8-core 160P

Contact Now

Product Description

Product Attributes

Model No.: 070867

Brand: YZTECH

Origin: China

Certification: ISO9001:2015

Species: Other

Package: Tape &Amp; Reel (Tr)

Supply Type: Original Manufacturer

Place Of Origin: China

Packaging & Delivery

Selling Units	:	Piece/Pieces
Package Type	:	Box Packaging

The file is encrypted. Please fill in the following information to continue accessing it

1.27 board to board connector 20P



Product Description

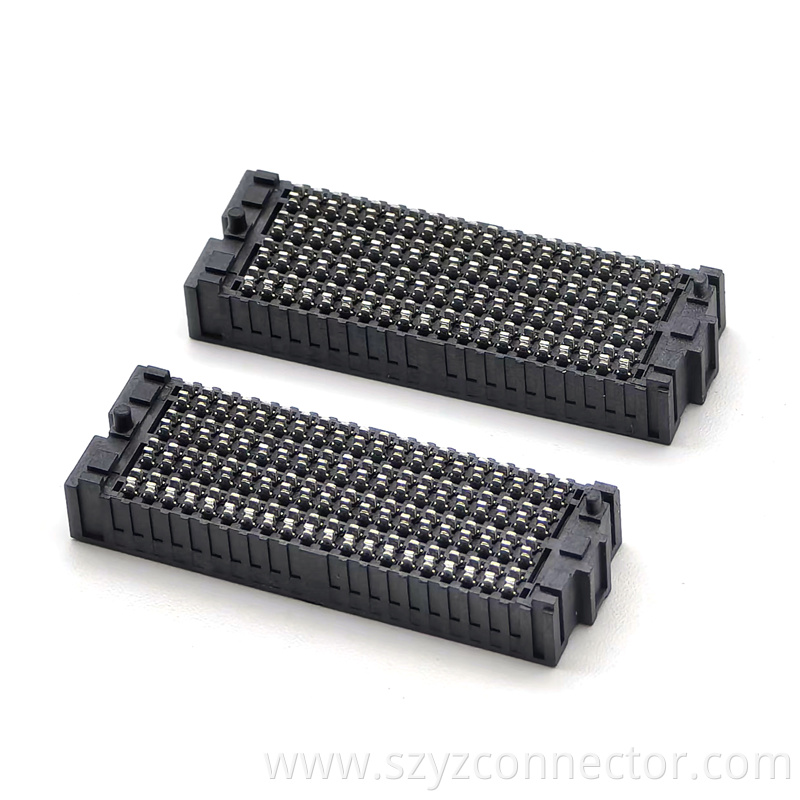

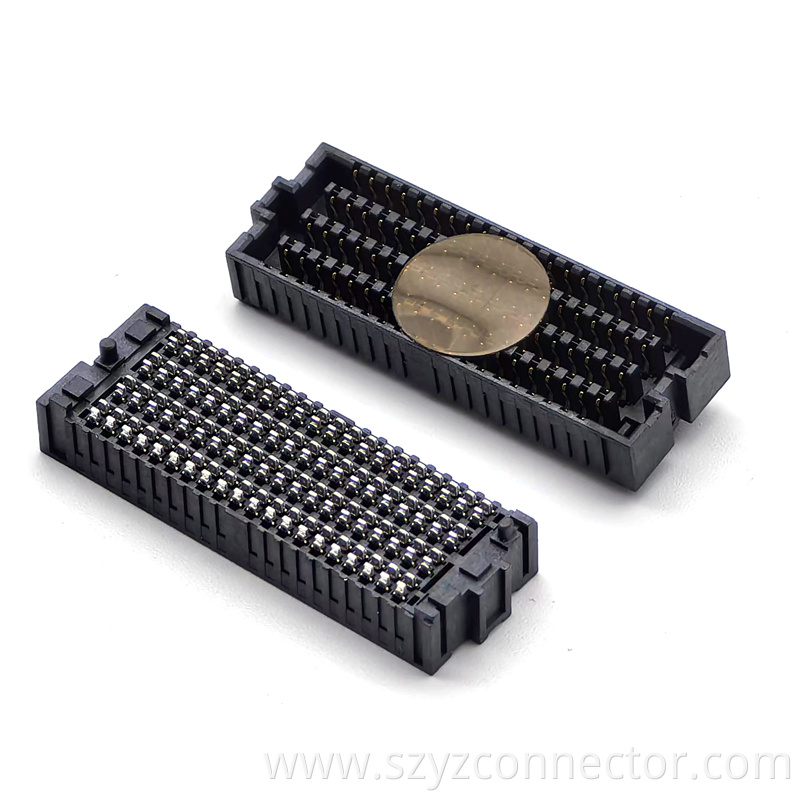

1.27mm Board to Board Connector 160P

The 1.27mm Board to Board Connector 160P by yztech is an ideal choice for precise inter-board connections in small and medium-density electronic devices. Its 1.27mm pitch and 20-pin design, while balancing space efficiency and transmission performance, perfectly conforms to the wiring specifications of board to board connector 1.27 mm pitch, suitable for office equipment motherboards and smart home sensors.As a reliable connector, its structural design references the industry standards of 1.27mm Board to Board Connectors, ensuring connection stability and compatibility.

The shell of 1.27mm BTB Connectors 20p,made of high-temperature resistant LCP material (UL94 V0 certified), operates stably at -55℃ to 125℃, and can be used with flexible board to board connector to meet complex wiring needs inside devices.The unique foolproof structure effectively prevents pin damage caused by misinsertion, and is compatible with the installation method of board to board edge connectors, adapting to edge connection scenarios of different PCBs. Internal terminals are made of gold-plated phosphor bronze, with a contact resistance as low as 9mΩ and a plug-in life of more than 800 times, maintaining stable transmission even in frequent plug-in scenarios.

Whether building signal transmission networks for small devices or realizing inter-board docking of multi-layer circuit boards,these 1.27mm SMT Board to Board Connectors stand out as a preferred component in small and medium-density connection scenarios with excellent precision, reliability and compatibility.
