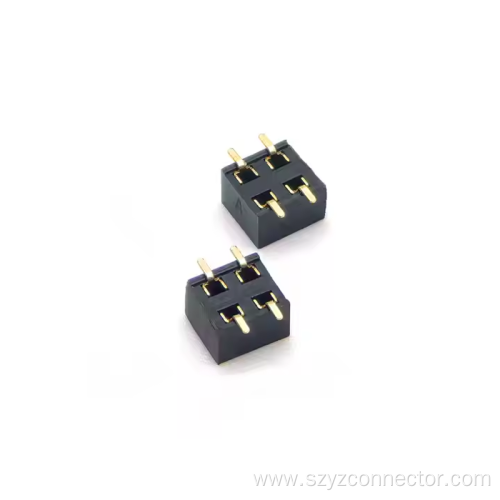

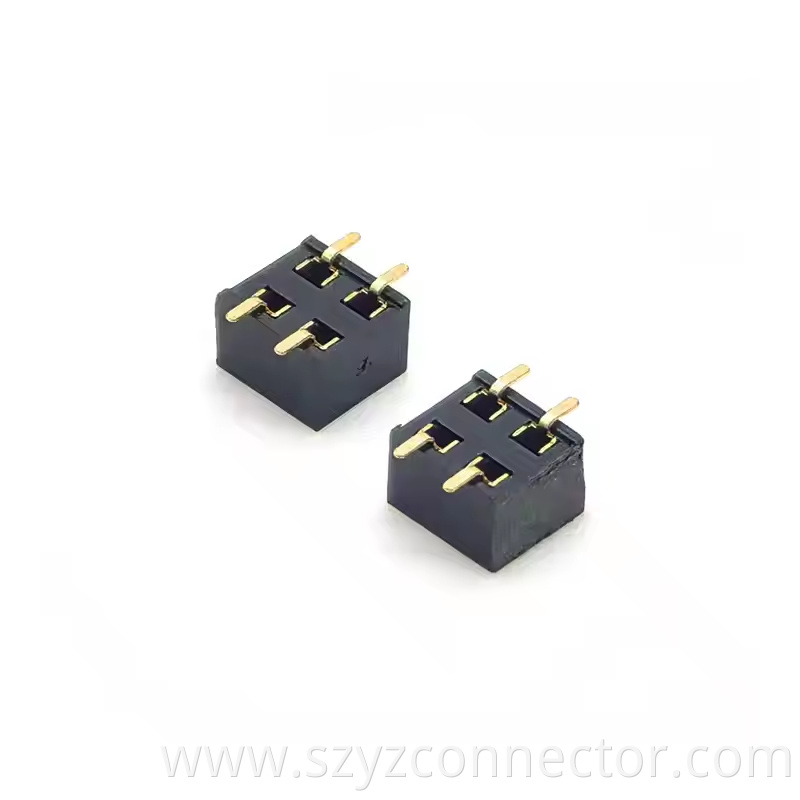

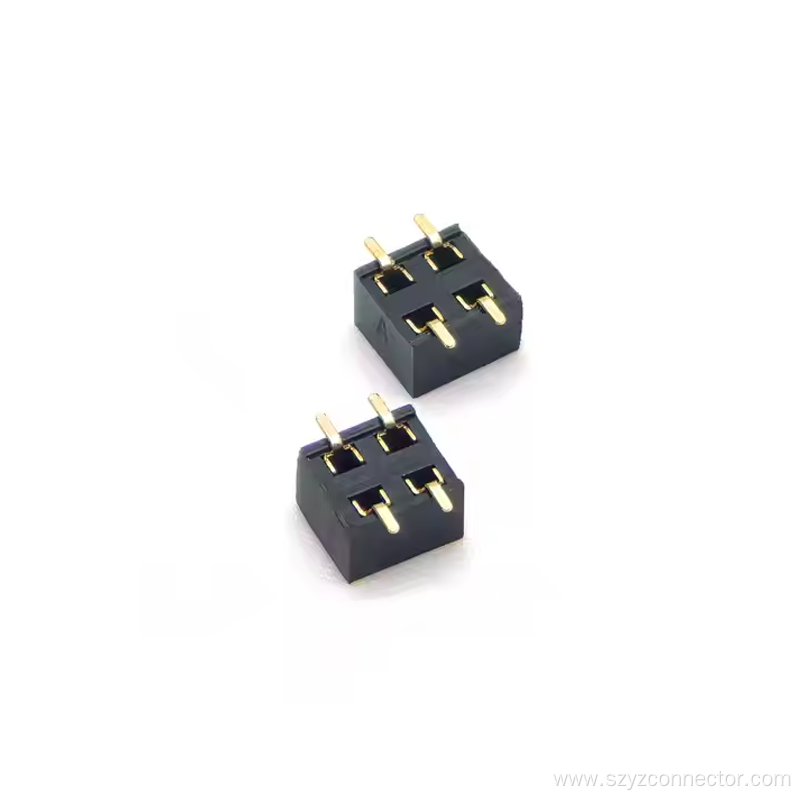

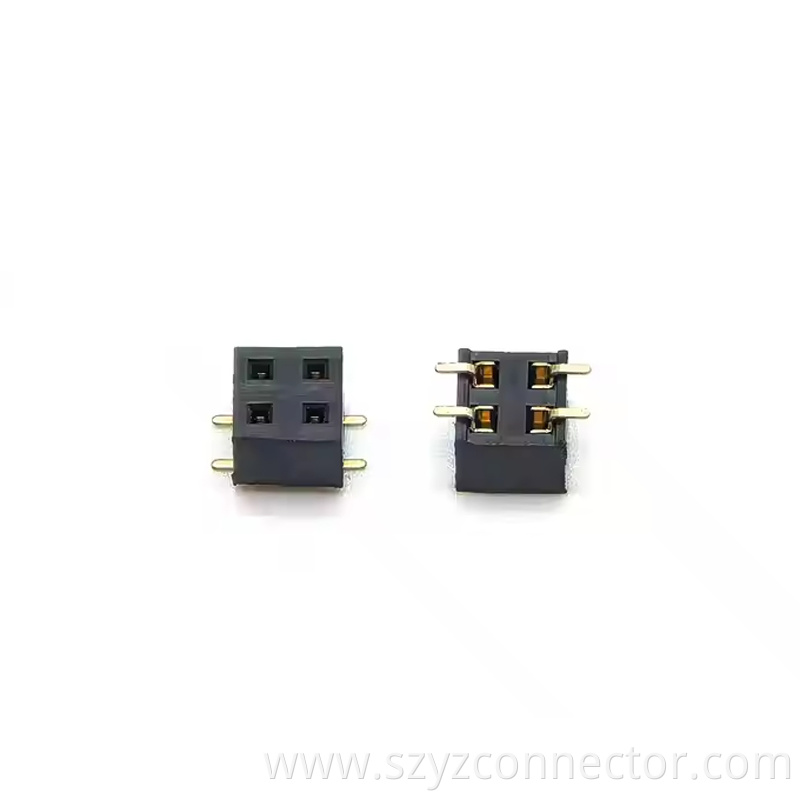

2.54mm Pitch Female Header SMT U TYPE

yztech’s newly launched 2.54mm Pitch Female Header SMT U TYPE is the ideal choice for achieving flexible interconnection and space optimization in electronic devices. As an innovative product in the 2.54 mm pitch female header series, its standard 2.54mm pitch and unique U-shaped structure precisely meet the complex wiring requirements of PCB boards, standing out among 2.54 mm header products for its excellent three-dimensional layout capabilities and stable electrical performance.



This female header features high-purity phosphor bronze terminals (anti-oxidation gold-plated) paired with high-temperature-resistant PBT (UL94V - 0) insulation materials, soldered by advanced SMT technology. It can stably carry 3A current in environments ranging from -40°C to +125°C, with a contact resistance as low as 15mΩ. The U-shaped design enables it to easily form three-dimensional interconnections with female header and male female Pin Header, effectively solving the problem of large space occupation by traditional straight pins. Customization services are available to meet the special requirements of different projects. Additionally, its 90° bend characteristic of 2.54 right angle provides more possibilities for compact circuit layouts. Widely used in communication devices, smart homes, etc. Certified by ISO9001, ISO14001, and RoHS-compliant, anti-static carrier tape packaging provides personalized services, offering reliable and efficient solutions for various electronic connection projects.
