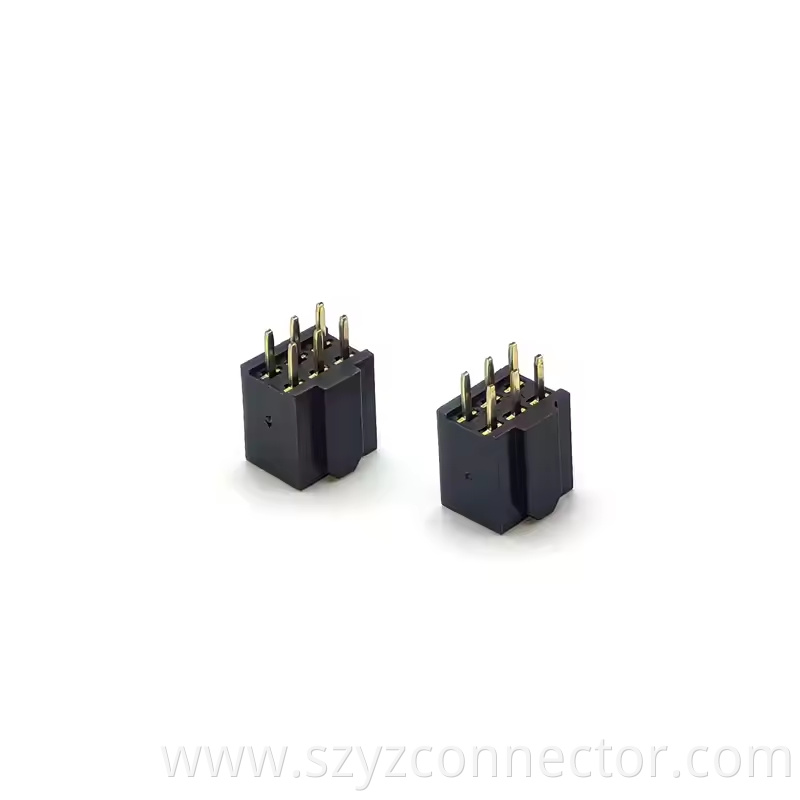

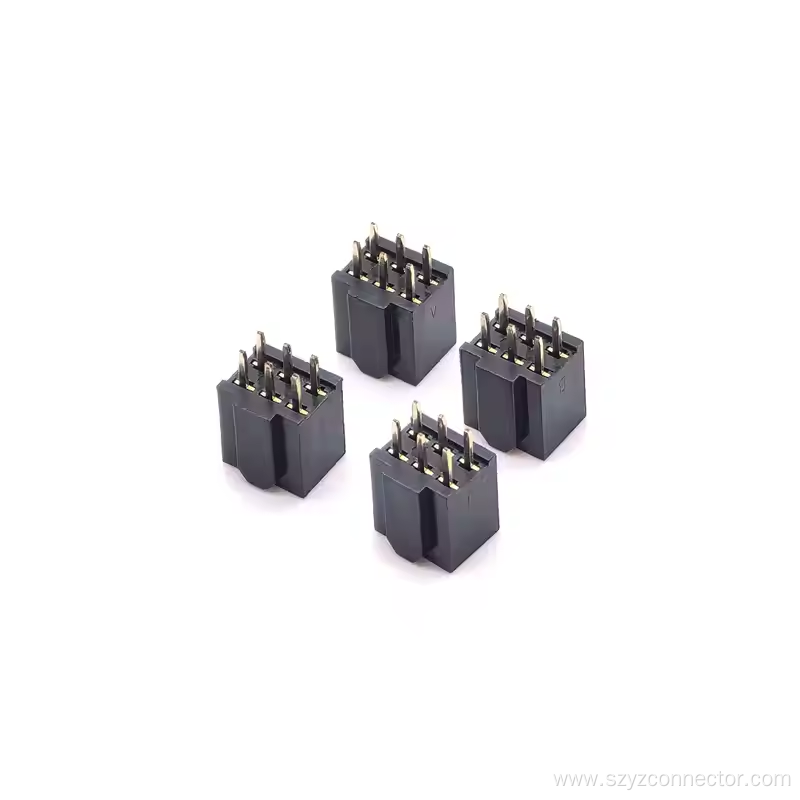

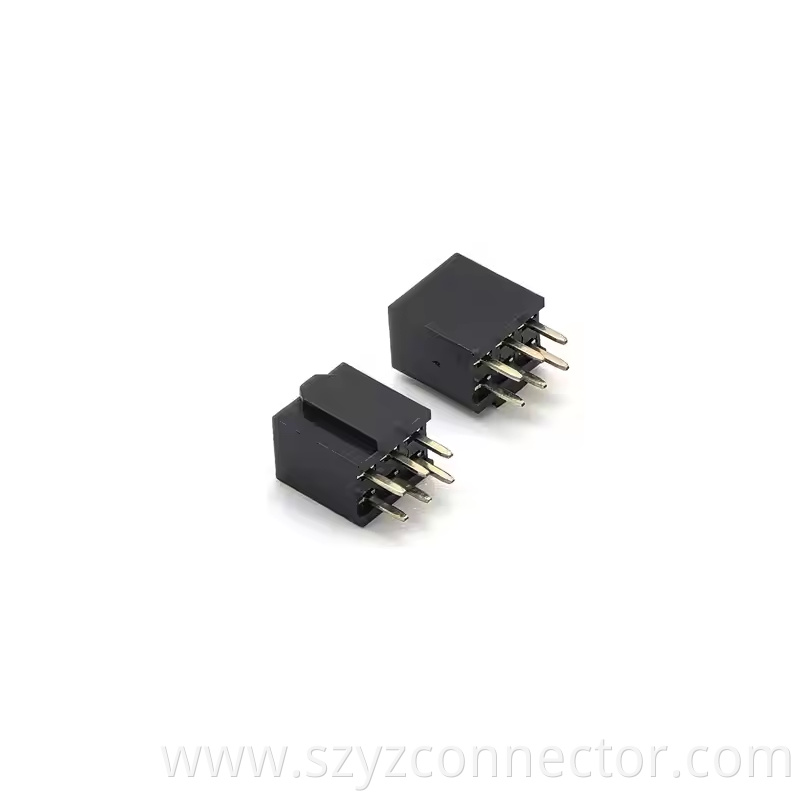

2.54mm Pitch Female Header With Convex

yztech’s 2.54mm Pitch Female Header With Convex is specially designed to enhance the stability and reliability of electronic connections. As an innovative product in the 2.54 mm pitch female header series, its standard 2.54mm pitch combined with a unique convex design precisely meets the PCB board’s requirements for highly stable connections, giving it a competitive edge in the 2.54 mm header category.



This female header features high-purity phosphor bronze terminals with anti-oxidation gold plating, paired with high-temperature-resistant PBT (UL94V - 0) insulation materials. It can stably carry 3.5A current in environments ranging from -40°C to +125°C, with a contact resistance as low as 13mΩ. The convex structure effectively increases the contact area and friction with female header and male female Pin Header, creating a tight bite during plugging and unplugging. Even in high-demand scenarios such as industrial equipment and automotive electronics with frequent vibrations, it ensures a secure and non-loose connection. Additionally, it supports 2.54 right angle installation, providing more flexibility for complex circuit layouts. Customization services are available to adjust the number and position of convex points and pin specifications according to customer needs. Certified by ISO9001, ISO14001, and RoHS-compliant, anti-static carrier tape packaging offers personalized services, laying a reliable foundation for various electronic connection projects.
