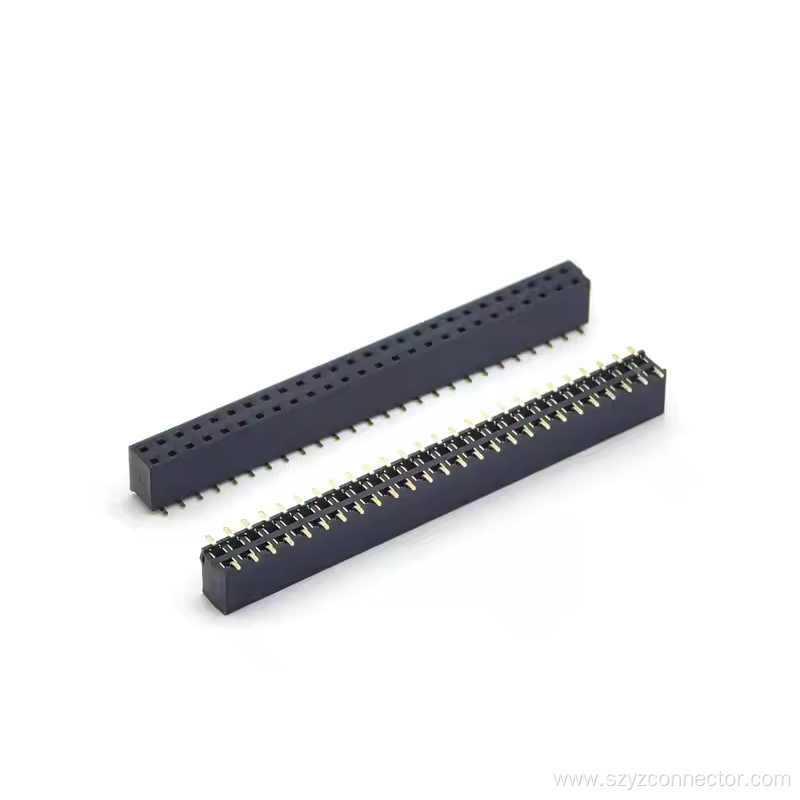

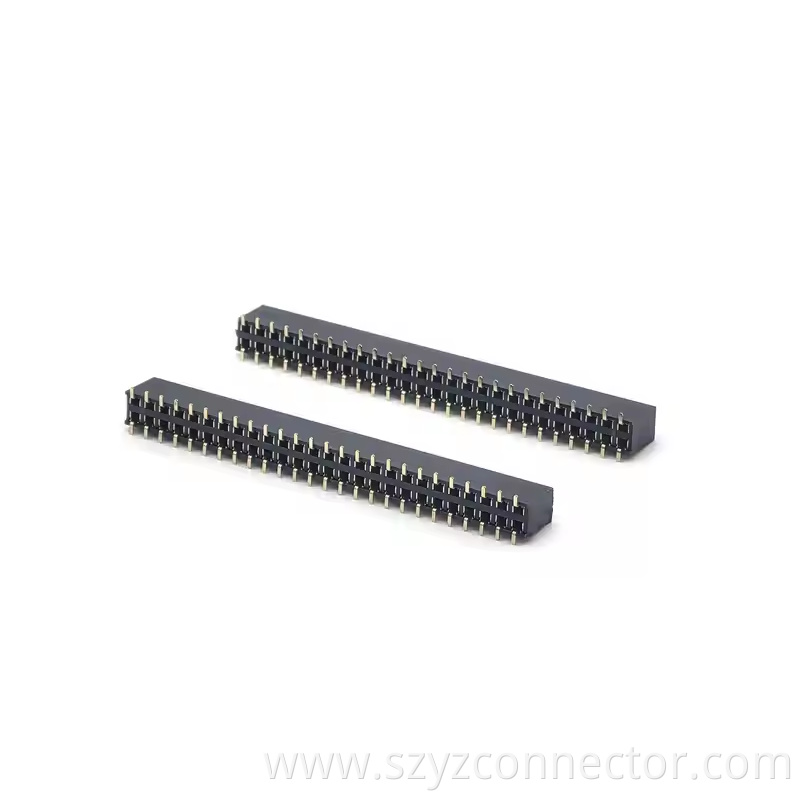

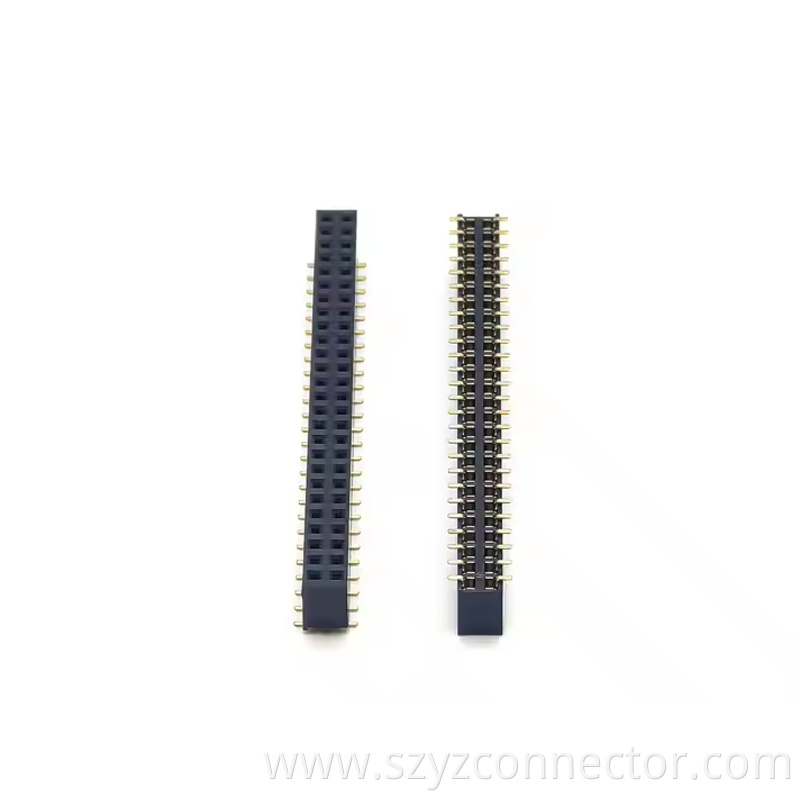

2.54mm Pitch Female Header Connector U Type

yztech’s 2.54mm Pitch female header connector U Type is a core component designed to provide flexible interconnection for complex circuit layouts. As a featured product in the 2.54 mm pitch female header series, its classic standard 2.54mm pitch and unique U-shaped structure precisely meet the three-dimensional wiring requirements of PCB boards, standing out in the 2.54 mm header category for its excellent space optimization capabilities and stable electrical performance.



Featuring high-purity phosphor bronze terminals (anti-oxidation gold-plated) and high-temperature-resistant PBT (UL94V-0) insulation materials, it stably carries 3A current in -40°C to +125°C environments with a contact resistance as low as 15mΩ. The U-shaped design enables 90° three-dimensional interconnection with Female Header and male female Pin Header, effectively saving PCB board space—particularly suitable for wiring needs in compact devices. Its 2.54 right angle feature supports right-angle installation, offering flexibility to avoid other components. Customization services are available to adjust pin counts and U-shaped opening sizes according to project requirements. Widely used in smart terminals, industrial control equipment, etc. Certified by ISO9001, ISO14001, and RoHS-compliant, anti-static carrier tape packaging provides personalized services, offering reliable and efficient solutions for diverse electronic connection scenarios.
