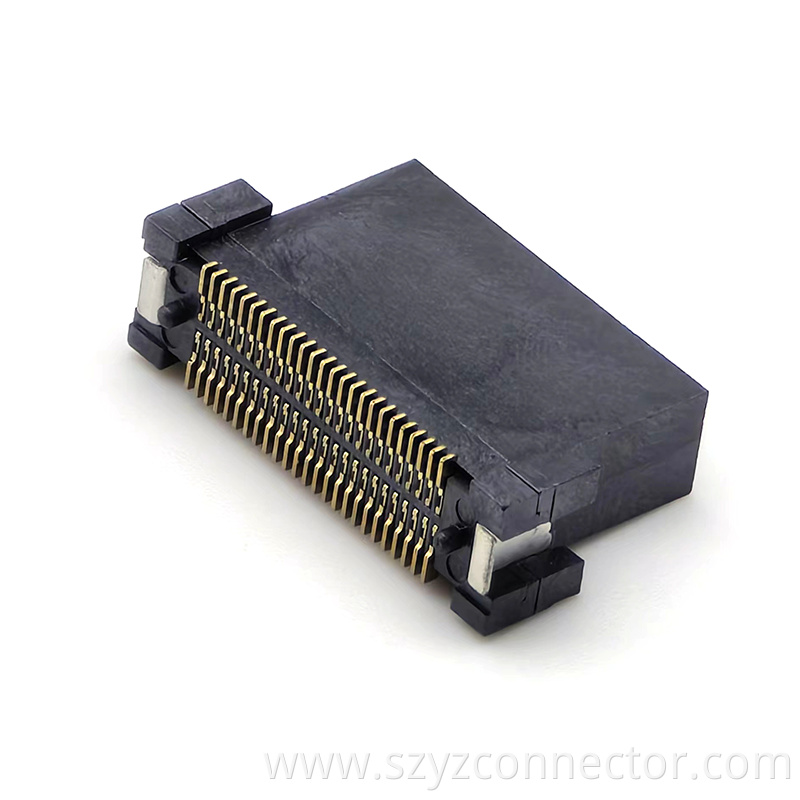

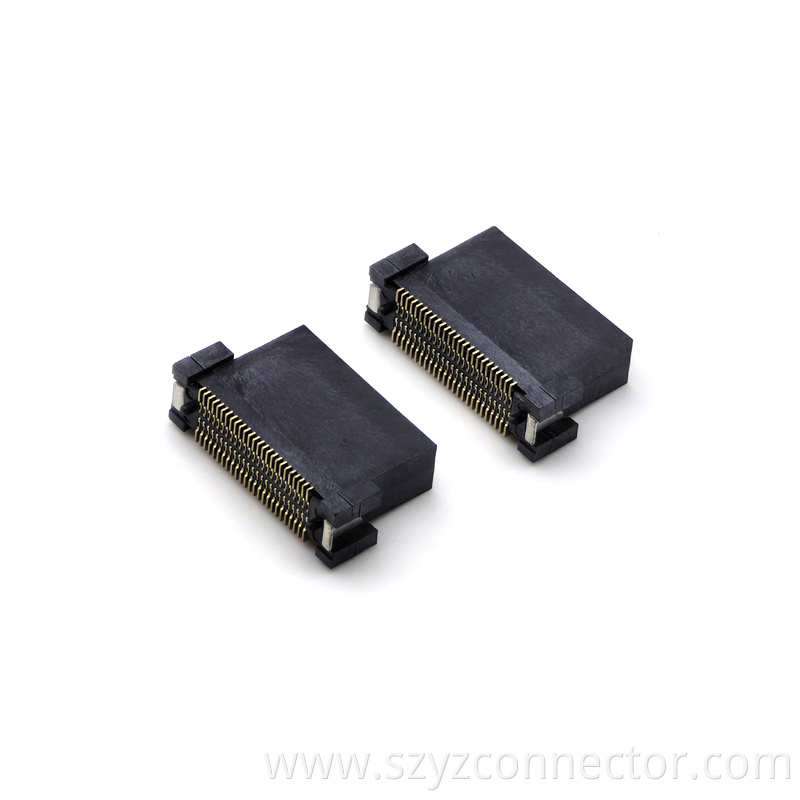

0.635mm Board to board connector 50P

0.635mm Board to board connector 50P

The 0.635mm Board to board connector 50P by yztech is an innovative solution for installation errors and vibration environments. The 0.635mm pitch and floating structure of these 0.635mm SMT Board to Board Connectors can compensate for ±0.5mm installation deviations, suitable for automotive electronic sub-modules and industrial robot controllers. As an excellent board to board connector,its structural stability meets the precision standards of jst board to board connector, ensuring reliable multi-signal transmission.​

The housing,made of high-temperature resistant PA66 (UL94 V0 certified), operates stably at -40℃~125℃,fully meeting the anti-vibration requirements of 0.635mm floating BTB Connectors automotive and withstanding 10-2000Hz continuous vibration. Unlike regular straight models, it can be combined with 90 degree board to board connector to flexibly adapt to vertical and planar wiring.Gold-plated phosphor bronze terminals ensure <7mΩ contact resistance and 1000+ mating cycles;the floating design reduces mechanical stress during insertion, extending equipment life.

Whether building complex connection networks in automotive electronics or realizing fault-tolerant connections in industrial equipment, these 0.635mm Board to Board Connectors stand out for its unique error compensation and reliability.
