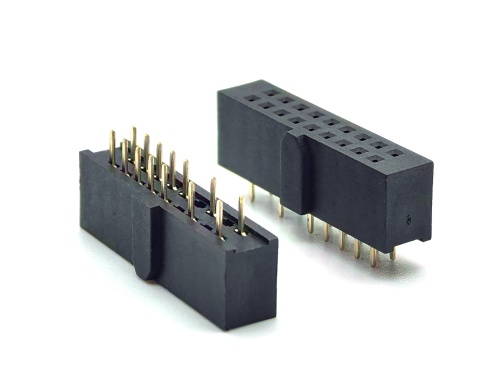

Female Headers: More Than Just Plastic – How Material Defines Performance
Female Header Connector materials exhibit specific characteristics that ensure reliability in electronic applications.The strain relief clamp,made of oil-resistant rubber,provides strong cable retention without damage,enabling easy installation.Female header components typically utilize UL 94V-2 rated nylon 6/6 for housing insulation,while contacts employ high-conductivity copper alloys,heat-treated to HRC 59°-61°hardness for optimal durability. In manufacturing,female header connector products...

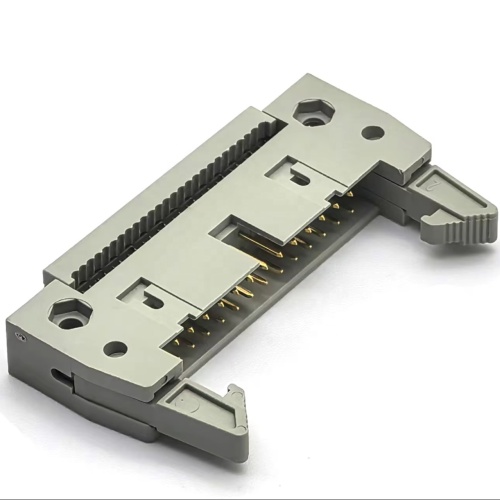

Navigating IDC Connectors: Key Types for Efficiency and Reliability
IDC Connectors, essential electronic components in modern interconnect systems, can be categorized based on various characteristics and applications: By Socket Configuration: • Single-row sockets for single-line cable connections • Dual-row sockets for double-line cable arrangements By Pin Density: • Low-density versions for simpler connections • High-density types for complex wiring requirements By Application: • Flat cable connectors for internal computer and printer applications •...
Know the Difference: A Quick Guide to Board-to-Board, Wire-to-Board & Wire-to-Wire Connectors
As fundamental electronic components,electronic connector products can be categorized into three main types based on their connection methods: Board-to-Board Connectors These provide the strongest signal transmission capability among all electronic connector types.Common pitches include 0.4mm Board-to-board Connectors,0.5mm Board-to-board Connectors,0.635mm Board-to-board Connectors,0.8mm Board-to-board Connectors,and 1.0mm Board-to-board Connectors.They're widely used in power...

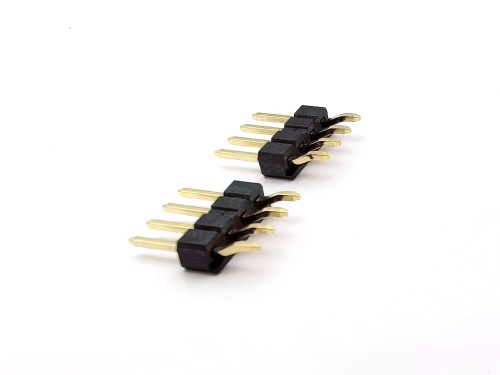

Pin Headers & Receptacles: Their Critical Role in Ensuring Reliable Telecom Connections
As fundamental electronic components, pin header and female header connectors play vital roles in communication systems, providing reliable circuit connections and signal transmission. These electronic connector solutions ensure operational stability across various communication devices. Key Application Areas: Hard Drives: Pin header and female header connectors link motors to drive boards, delivering control signals and power while offering resistance to interference and environmental...
IDC Connectors: Weighing the Pros and Cons – Is it the Right Choice?
As a fundamental electronic connector, the IDC connector (Insulation Displacement Connector) offers distinct benefits and limitations for wire interconnection. Understanding these characteristics helps in proper component selection for various applications. Key Advantages: Rapid Installation: Enables fast, solderless connections by displacing wire insulation, making it ideal for mass production and cable harnessing. Reliable Performance: Provides stable electrical contact with consistent...

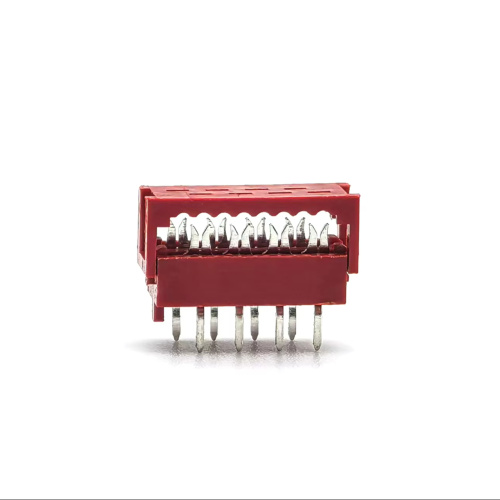

Red Alert Reliability: Why IDC Connectors Became Industrial Automation's Trusted Sentinel
In the complex cable networks of industrial control cabinets, the vivid red hue of red IDC connectors serves a critical purpose beyond basic connectivity. This specialized electronic connector leverages color-coding principles to significantly improve safety and maintenance efficiency in automated environments, building upon the standard reliability of IDC connector technology. 1. Engineering Value of Red Warning Function The color red is designated as a warning color in the IEC 60204-1 safety...

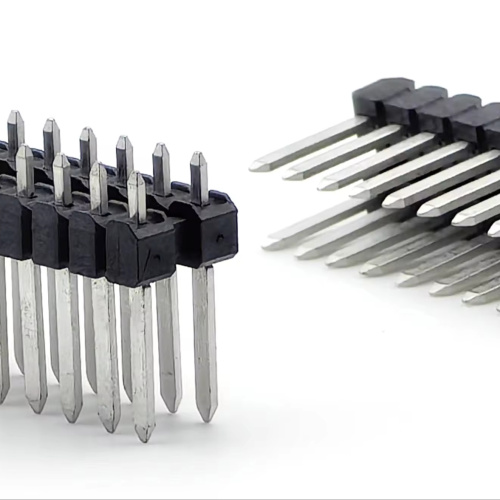

Precision in Motion: How Automotive Pin Headers Enable Next-Generation Vehicle Innovation
The automotive pin header connector plays a vital role in vehicle electrical systems. As a fundamental electronic connector, its primary function is to link and transmit electrical current or signals, ensuring the proper operation and safety of various in-car devices. Key Functions: 1. Current Transmission: This electronic component connects various automotive devices, enabling the smooth flow of current to achieve intended circuit functions. 2. System Reliability: The automotive connector...

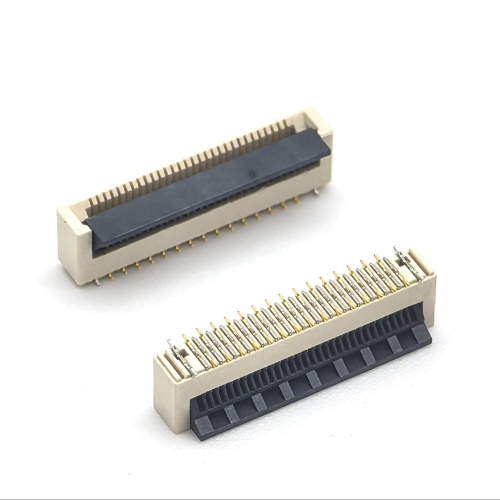

Top-Entry vs. Bottom-Entry: How to Choose the Right FPC Connector for Your Design
The FPC connector is a common electronic connector used to interface flexible printed circuits (flat cable) with rigid PCBs. Among FFC&FPC connector types, the terms "top-entry" and "bottom-entry" refer to distinct structural designs, each suited for different applications. 1. Structural Difference The top-entry FPC connector features a design where the socket is separate from the upper contacts. The flat cable is inserted from the top and pressed into a slot, causing the FPC to lie flush...

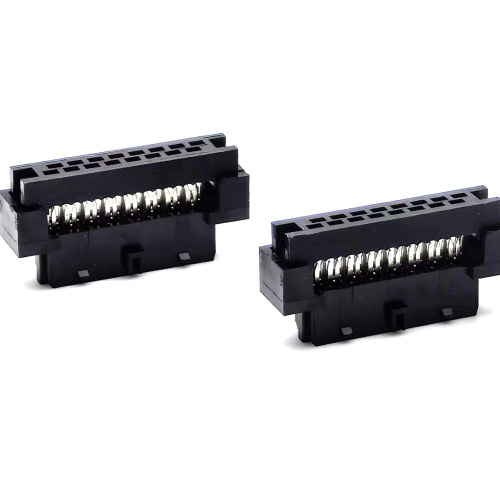

Beyond the Crimp: How IDC Connectors Deliver Speed and Reliability in Modern Electronics
The Insulation Displacement Connector (IDC), a fundamental electronic connector, is widely used in the electronics industry for circuit connections and signal transmission. Its efficiency and reliability make it an indispensable electronic component in various devices and PCBs. IDC technology utilizes a unique design that allows wires to be inserted into connector slots with simple pressure, eliminating the need for pre-stripping while ensuring secure connections and stable signal transmission....

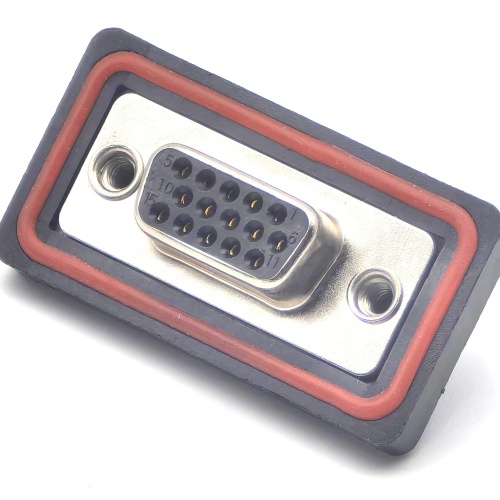

Defy the Elements: How Ruggedized Waterproof D-Subs Ensure Connectivity in Demanding Applications
A waterproof D-Sub connector is a specialized type of electronic connector designed to provide reliable performance in wet and humid conditions. While standard D-Sub connectors are common components in computers, communication equipment, and industrial control systems, the D-Sub waterproof connector variant features enhanced protection for challenging applications. These robust electronic component units are engineered with special sealing elements and treated housings that offer superior...

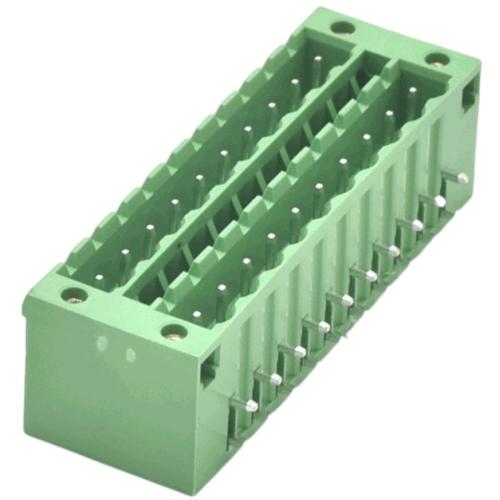

Effortless Integration: A Step-by-Step Guide to Mounting Spring Terminal Blocks on PCB
The spring terminal block is a popular electronic connector that utilizes a spring-clamp mechanism for easy, tool-free wire connections to PCBs. Here is a standard wiring procedure for PCB spring terminal blocks. Tools & Materials Required: Spring terminal block Wire or cable PCB Wire strippers Step-by-Step Process: 1.Prepare the Wire: Strip the wire insulation to expose enough conductor for insertion, ensuring no stray strands remain. 2.Open the Clamp: Using a small screwdriver...
Right-Angle vs. Straight Pin Headers: A Guide to Choosing the Right One for Your Design
The right-angle pin header (90-degree) and straight pin header (180-degree) are two common types of pin header connector with distinct physical forms and applications. 1. Right-Angle Pin Header (90-Degree) This electronic connector features pins that extend from the housing at a 90-degree angle. It is primarily used to mount an electronic component or module perpendicularly onto a PCB (Printed Circuit Board), making it ideal for embedded systems, expansion boards, and sensor modules where...

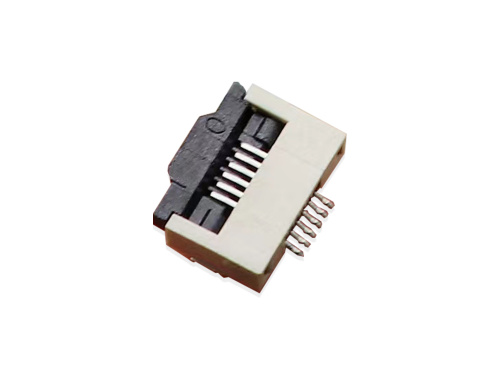

FPC Connector Soldering: Avoid These Common Mistakes for a Perfect Connection
Manual soldering of FPC connectors requires precision to ensure a reliable connection for this critical electronic connector.Below are the key steps for hand soldering an FPC flat cable. Step 1: FPC Flat Cable Preparation & Fixing Align the FPC's gold fingers with the PCB's gold-plated pads. The soldering iron temperature must be set as per specification (typically 330±20°C) with a ground resistance ≤5 ohms. The iron tip must not touch nearby electronic component parts or cause short...

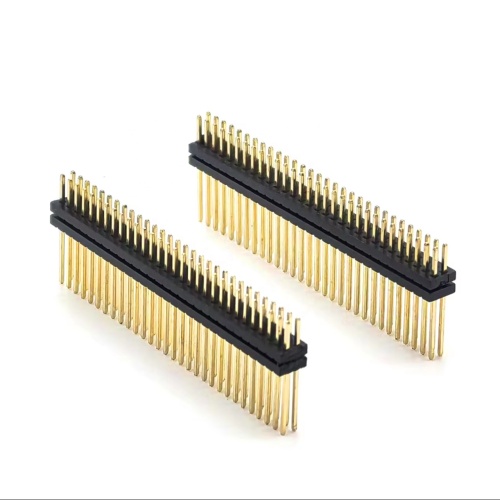

1.27mm Connector Problems? Your Complete Troubleshooting Guide to Stable Connections
In electronic assembly, the 1.27mm pin header and 1.27mm female header are common electronic connector components. However, they can sometimes suffer from poor contact, which may stem from several causes. Potential Causes of Poor Contact: 1.Material Issues: The base materials used in the electronic component may have poor conductivity, hindering efficient current flow. 2.Mechanical Stress: Physical strain can deform the 1.27mm pin header or female header, altering their shape and compromising...

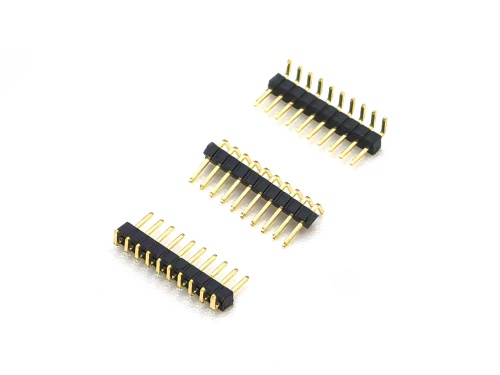

Machined Pin Headers & Female Headers
The machined pin header and its corresponding female header are widely used electronic connector components, valued for their reliable performance in electronics, communications, and computing. A key advantage is their high reliability. The machined pin header features a precise design that prevents poor contact and loosening during mating, ensuring stable signal transmission. With a large contact area, this electronic component can handle higher currents and voltages, supporting robust device...

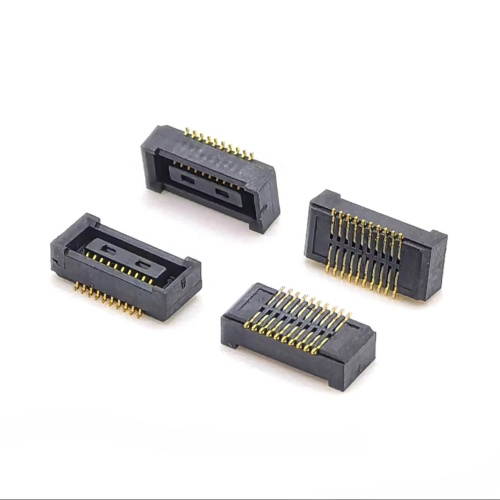

Unlocking 5G Speed: The Vital Role of Board-to-Board Connectors
A board-to-board connector is a compact coupling plug/socket that directly connects power and signals between printed circuit boards (PCBs). It provides reliable, pluggable interconnections for PCBs, standing out as one of the most capable electronic connector types for data transmission. In recent years, China's mobile phone production has sustained rapid growth. Particularly with 5G commercialization, smart devices like phones and wearables are evolving towards multifunctional, modular, and...

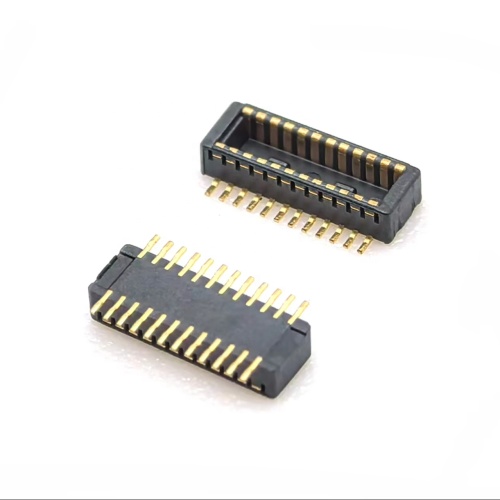

Avoid These Costly Mistakes: The Ultimate Board-to-Board Connector Soldering Guide
Proper soldering is crucial for the performance and reliability of board-to-board connector systems. When assembling an electronic connector to a PCB, attention to several key parameters ensures a robust connection without damaging the electronic component. Soldering Process Considerations: 1.Temperature:The soldering temperature must be calibrated for the specific board-to-board connector and components. Excessively high temperatures can damage the connector, while insufficient heat may create...

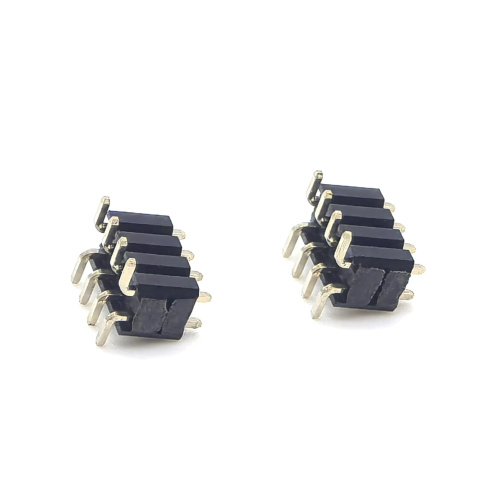

Plastic Material Classification for Pin Headers & Female Headers
Pin header and female header connectors are ubiquitous in electronics，found in mobile phones,computers,smart meters,communication devices, and motherboards.The plastic housing material is critical for performance. Shenzhen YangZhan Electronic provides an overview of the common materials used:PBT,NYLON, and LCP. 1. PBT Plastic PBT is a cost-effective material known for its good strength and friction resistance.However,it has poor formability and high shrinkage during molding. Its relatively low...
IDC Connectors: The Secret to Faster, Lighter & More Reliable Electronics
The Insulation Displacement Connector (IDC connector) is widely used in modern electronics. Its applications span numerous devices, including: Computer hardware (hard drives, optical drives, motherboards) Communication equipment (routers, switches, telephones) Home appliances (TVs, audio systems, washing machines) Automotive electronics (car audio, navigation systems) Key advantages of IDC connectors include: 1.Easy Connection: Utilizing insulation displacement technology, IDC connectors...
D-Sub Connector: Working Principle & Application Fields
A D-Sub connector consists of a metal shell, a plug, and a socket. Its signal transmission is achieved through a straightforward yet effective process: 1. The plug and socket contain multiple pins (for power, signals, etc.) that mate to establish an electrical connection. 2. These pins are typically soldered to a PCB or cable. A solder type D-Sub connector uses direct soldering, while a solder cup D-Sub connector provides cups for easy wire termination. 3. When mated, the pins connect,...

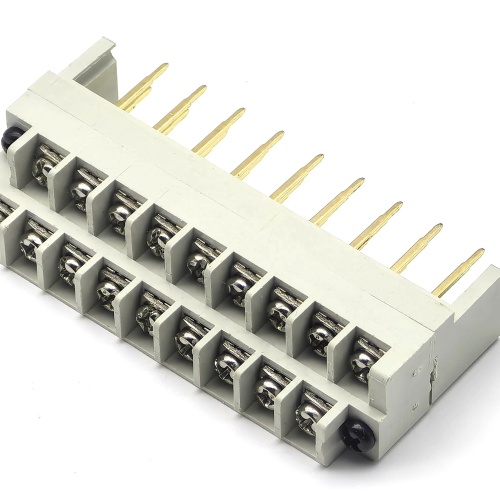

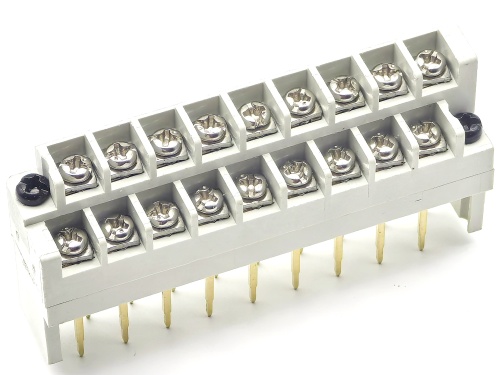

Barrier Terminal Blocks: Key Specifications & Technical Parameters
Barrier terminal blocks are essential connectors in electronic connectors, electrical, and automation systems, featuring a row of metal or plastic barriers to secure wires or cables. Available in various models, their specifications can be customized to meet diverse application needs. Here are the key parameters for selecting terminal blocks: 1.Current Rating (Amps):A critical specification indicating the maximum current the terminal block can safely carry, ranging from a few amps to several...

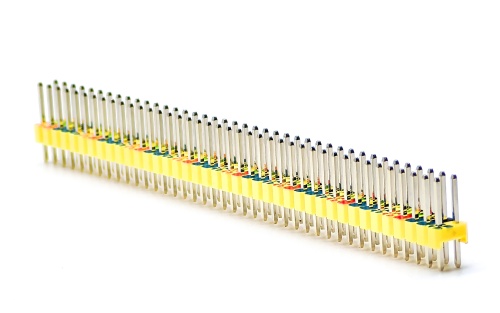

The Secret Weapon in Your Circuit: Using Color-Coded Headers to Prevent Errors
The primary advantages of colored pin headers lie in their high visibility and flexibility. The color-coding significantly improves circuit identification, making it easy to distinguish between different signal lines. Their standardized design and versatile application make them extremely practical in electronics, enabling rapid circuit prototyping and testing. Furthermore, a colored pin header connector is durable, capable of withstanding repeated mating cycles, making it suitable for...

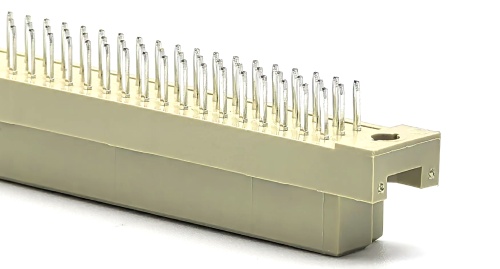

Securing Methods for DIN 41612 Female/Male Connectors
There are two primary methods for mounting DIN 41612 connectors in electronic systems, each with distinct advantages and trade-offs. 1. Backplane Mounting This approach involves mounting multiple DIN 41612 female connectors or DIN 41612 male connectors onto a single PCB, creating a structured backplane that is then secured to the chassis. The key advantage is excellent stability and simplified interconnections, as all routing is handled internally on the PCB. Installation of the pre-assembled...

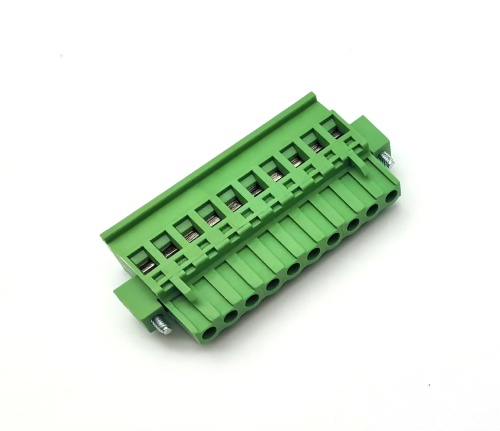

Terminal Blocks: What Are They and Which Types Do You Need to Know?
A terminal block is a modular, insulated device that secures two or more wires together, providing a reliable point for electrical or signal connection. They are fundamental components in a vast range of applications, from electronics and instrumentation to industrial automation systems. Here is a detailed look at the common types: 1. Screw Terminal Blocks The screw terminal block is the most classic type. It uses a screw mechanism to clamp a wire inserted into a terminal. By tightening the...
