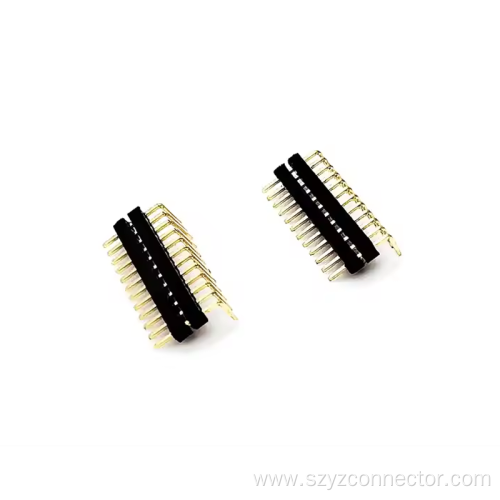

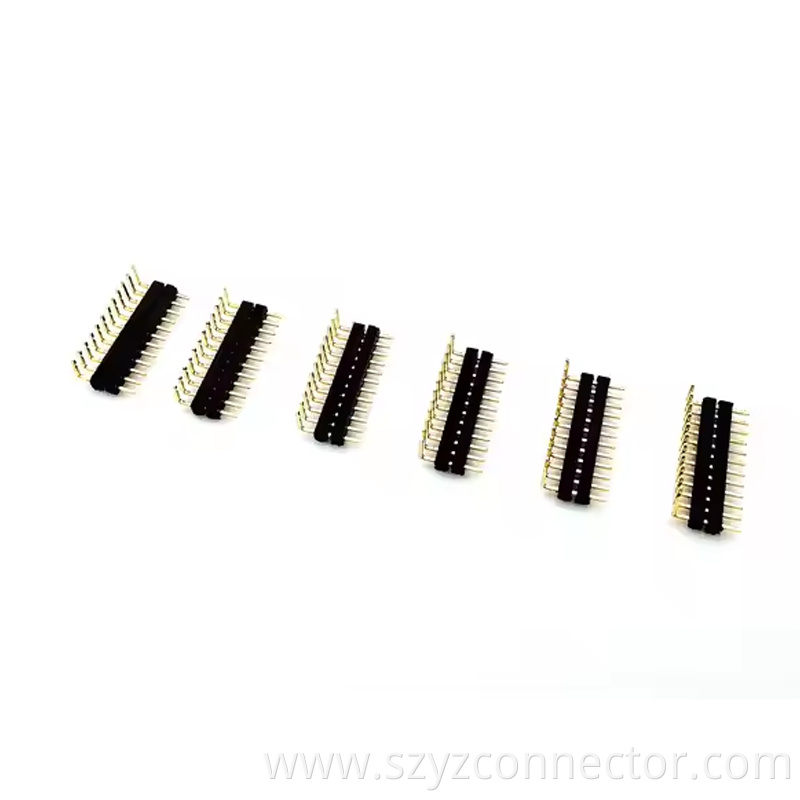

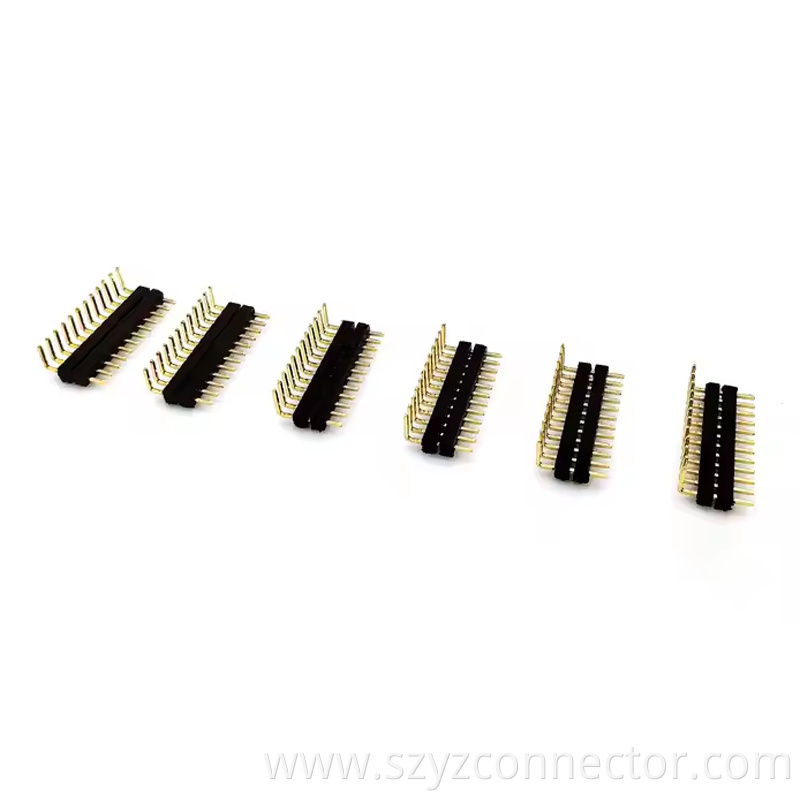

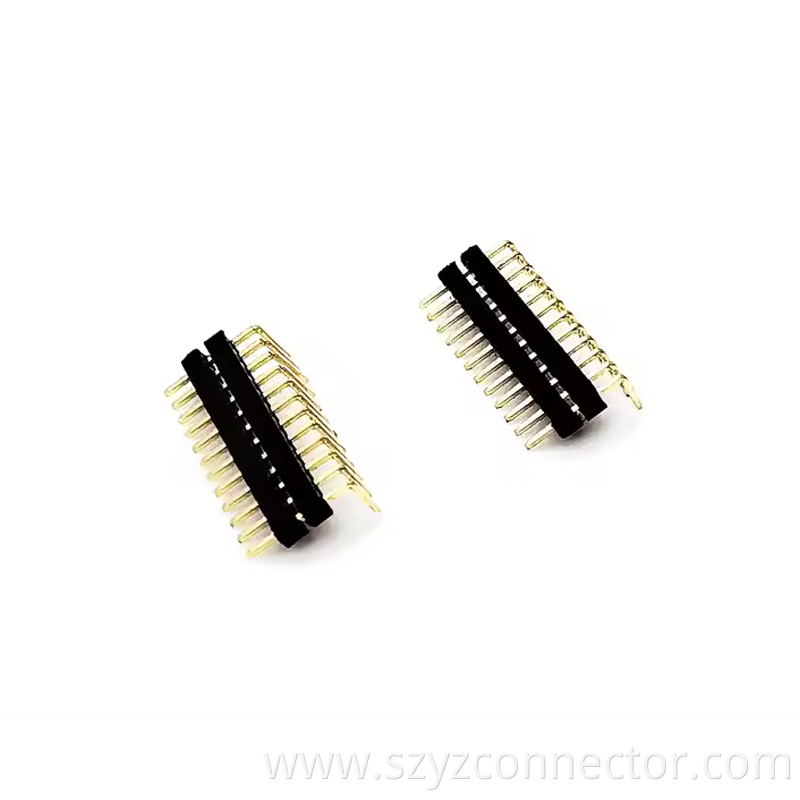

1.0mm Pitch Header Right Angle Double Contact

yztech's newly launched 1.0mm Pitch Header Right Angle Double Contact is an excellent choice for high-reliability connection requirements. As an innovative product in the Pin Header series, its precise 1.0mm pitch and right-angle structure effectively save internal device space, especially suitable for compact layout scenarios of PCB Pin Header, setting a performance benchmark in the 1.0 mm pitch header field.



This connector features a unique double-contact design, enhancing signal transmission stability by 50% compared to traditional products, making it a perfect fit for industries with strict signal requirements, such as industrial computers and communication systems. It supports various soldering types, including SMT and through-hole, allowing flexible application in different production processes. With high-quality C2680 terminals paired with black LCP (UL94V - 0) insulators, it operates stably at a rated current of 2A/pin in environments ranging from -40°C to +105°C. The Gold Flash plating, combined with a ≥50u" nickel base layer, strictly controls the contact resistance within 20mΩ, ensuring low-loss signal transmission. The 6 - 64 PIN configuration meets diverse device needs and is highly compatible with Female Header Pins. Certified by ISO9001, ISO14001 and RoHS-compliant, it comes in standard anti-static tray + carton packaging. Flexible ODM and OEM customization services are available, providing one-stop solutions for requirements related to 1mm pitch header and pin header 90 degree.
