1.0mm Pin Header Single Row Black 12P

Get Latest Price

Payment Type:	L/C,T/T,D/P,Paypal,others
Incoterm:	Express Delivery
Min. Order:	1000 Piece/Pieces
Transportation:	Ocean,Land,Air,Express
Port:	Shenzhen

Option:

Black 1-core 12P

Contact Now

Product Description

Product Attributes

Model No.: 1101.100R-1*12P-H2,0

Brand: YZTECH

Origin: China

Certification: ISO9001:2015

Species: Headers And Pcb Receptacles

Package: Bulk

Supply Type: Original Manufacturer

Place Of Origin: China

Packaging & Delivery

Selling Units	:	Piece/Pieces
Package Type	:	Box Packaging

The file is encrypted. Please fill in the following information to continue accessing it

1.0mm Pitch Pin Header Connector Single Row Right Angle Dual Plastic



Product Description

1.0mm Pin Header Single Row Black 12P
YZTECH introduces its 1.0mm Pin Header Single Row Black 12P—a compact, single-row, right-angle male header connector designed for space-constrained PCB layouts. Featuring 12 positions per row in a rectangular form factor,it supports DIN-standard PCB integration through a reliable bending plug installation.The brass contacts with half gold tin plating deliver low-resistance signal transmission, rated for 0.75A current and 600V voltage, while offering corrosion resistance.

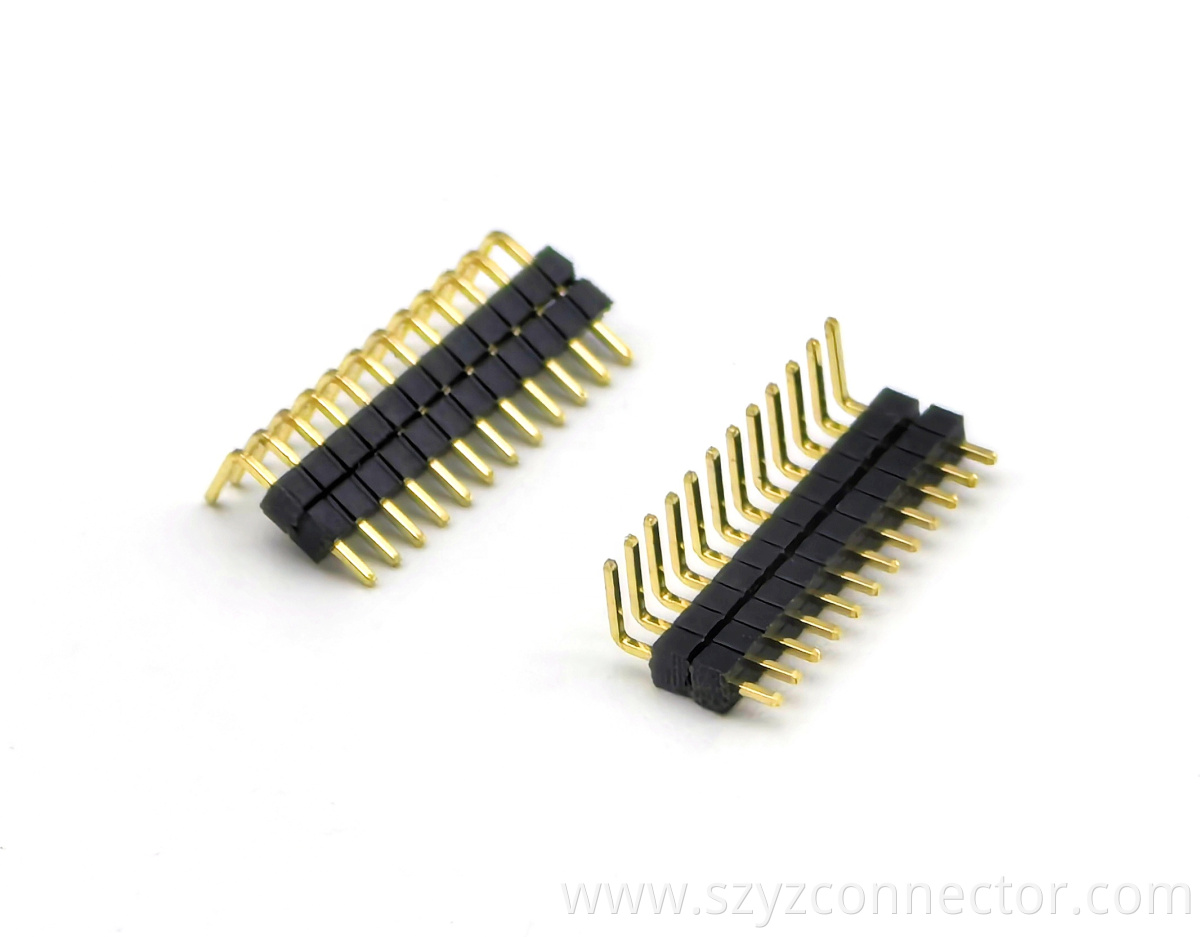

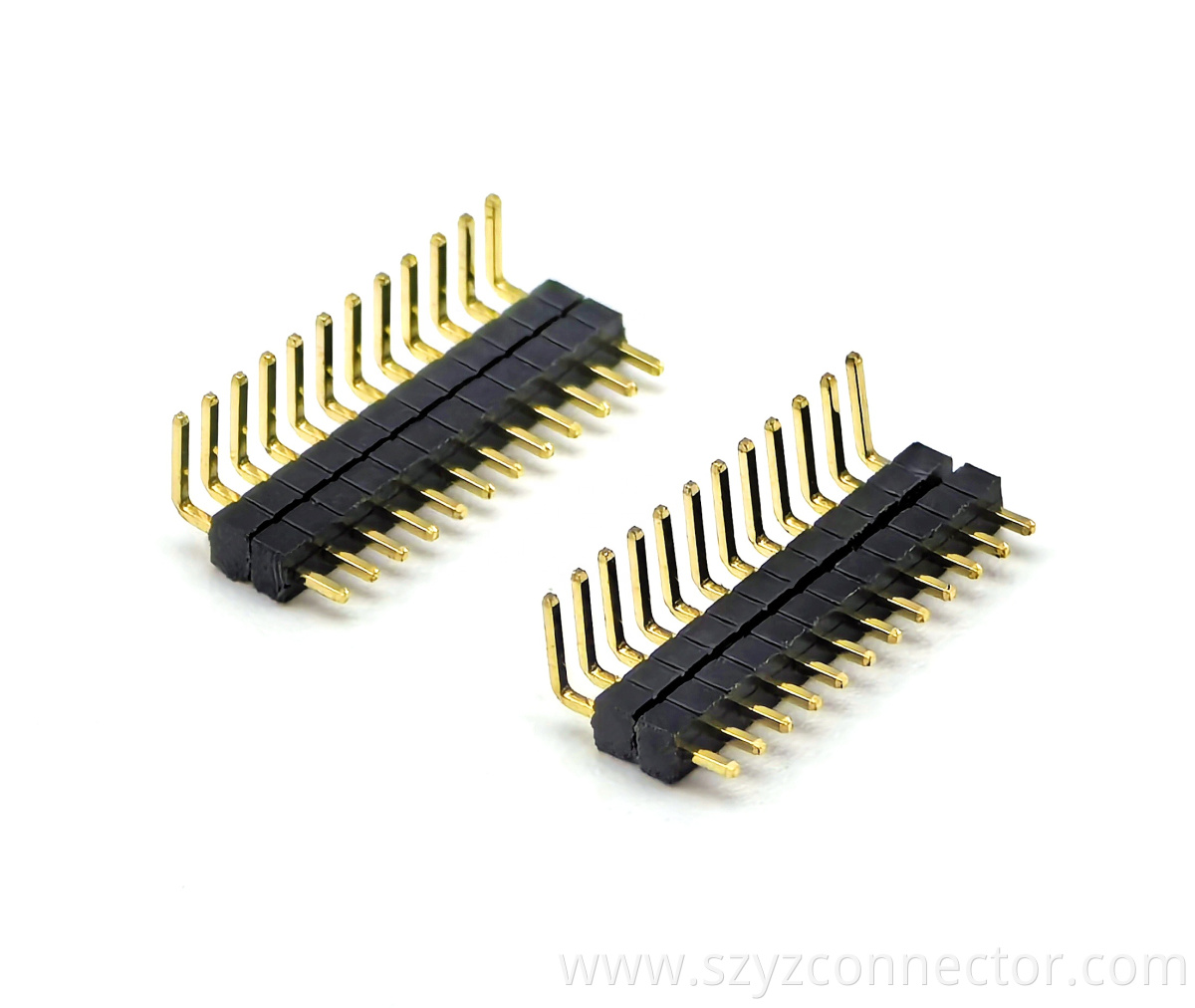

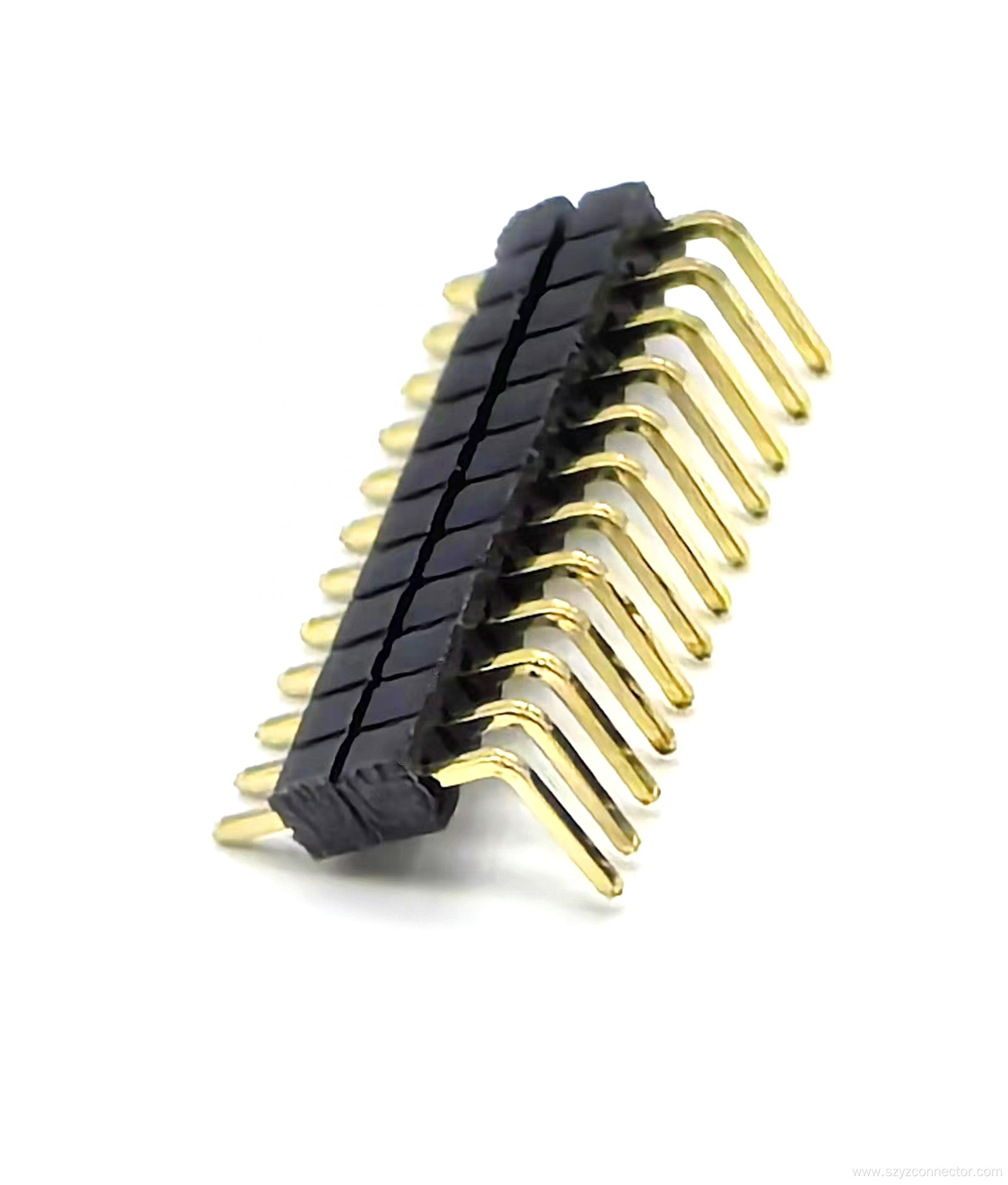

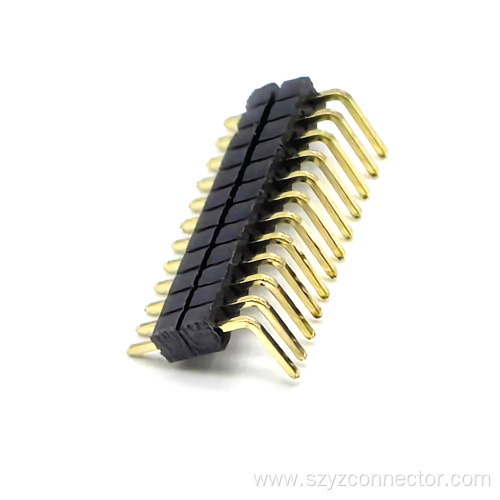

1.0mm Pitch Pin Header Connector Single Row Right Angle Dual Plastic H:2.0mm 1*12P

Built with a PA6T colloidal housing,the 1mm pin header dual plastic ensures excellent flame retardancy and chemical resistance, outperforming standard nylon in high-temperature settings. Its operating temperature spans from -45°C to +105°C, and the 1mm pitch header H2.0mm withstands soldering temperatures up to 220°C for 10 seconds, making it compatible with automated assembly processes. The right-angle design maximizes PCB space efficiency, ideal for dense electronic layouts.

Suitable for a wide range of applications—including consumer electronics,IoT devices,automotive control modules, and medical equipment—this 1.0mm pitch pin header 90 degree is packaged securely in boxes for safe transport and streamlined manufacturing. It meets international trade and PCB design standards, ensuring global supply chain compatibility.
