0.8mm Pitch Board to Board Connector 40P

0.8mm Pitch Board to Board Connector 40P

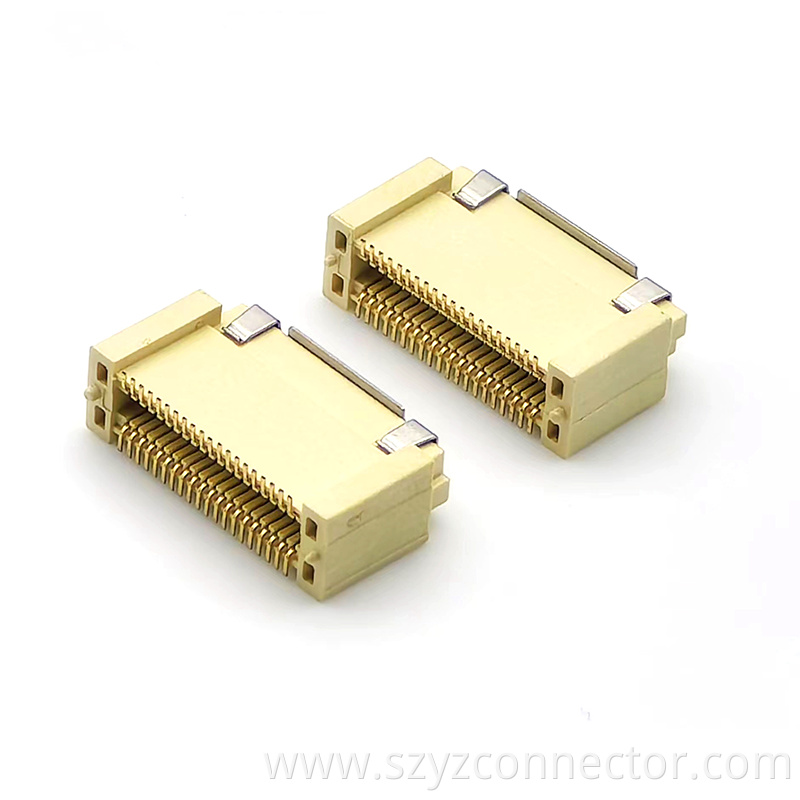

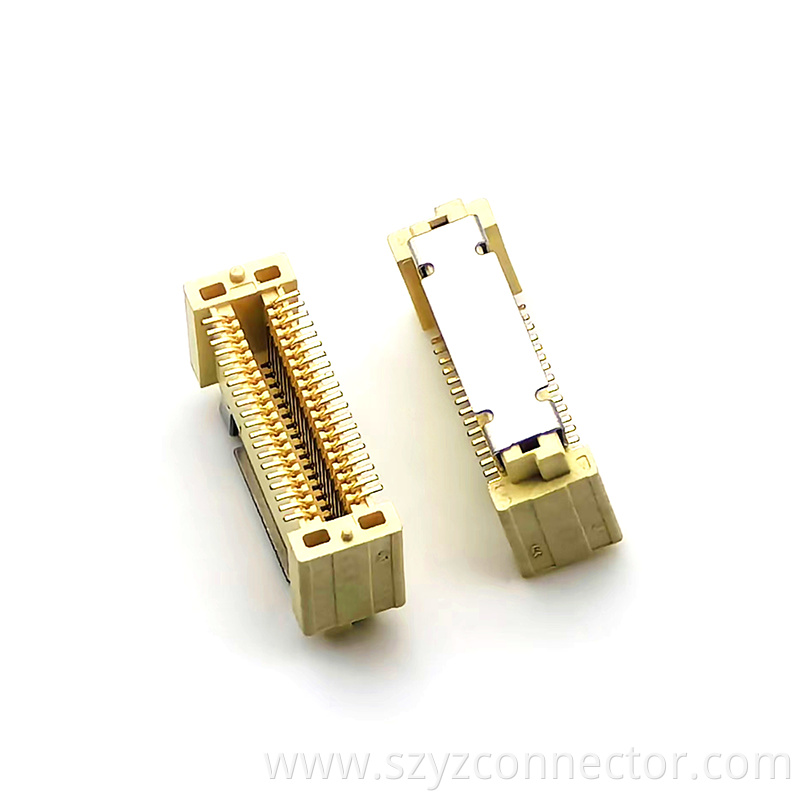

The 0.8mm Pitch Board to Board Connector 40P by yztech offers an efficient solution for inter-board connections in medium-high density electronic devices. Its 0.8mm pitch, 40-pin design, and 11.7mm height enable multi-signal parallel transmission in limited space, suitable for smart controllers and industrial detection modules. As reliable 40p SMT Board to Board Connectors,its structural standards reference board to board connector molex industrial specifications, with a female head design that precisely mates with the same series male to ensure signal integrity.​

The housing,made of high-temperature resistant PBT (UL94 V0 certified), operates stably at -40℃~125℃, fully compatible with Board to Board Connectors 0.8mm processes for efficient automated assembly. Unlike the vertical connection of board to board connector 90, it features a straight layout ideal for planar wiring, and can work with board to board coaxial connector to handle both high-frequency signals and power transmission. Tin-plated phosphor bronze terminals ensure <8mΩ contact resistance and 500+ mating cycles, maintaining stable connections even in frequently used scenarios.

Whether building multi-layer PCB signal networks or achieving precise inter-board docking, these 40p 0.8mm BTB Connectors stand out for balanced performance and flexibility in medium-high density connection scenarios.
