0.8mm Board to Board Connector Dual Row

Get Latest Price

Payment Type:	L/C,T/T,D/P,Paypal,others
Incoterm:	Express Delivery
Min. Order:	1000 Piece/Pieces
Transportation:	Ocean,Land,Air,Express
Port:	S,h,e

Option:

Ivory 2-core 22P

Contact Now

Product Description

Product Attributes

Model No.: 070863

Brand: YZTECH

Origin: China

Certification: ISO9001:2015

Species: Other

Package: Tape &Amp; Reel (Tr)

Supply Type: Original Manufacturer

Place Of Origin: China

Packaging & Delivery

Selling Units	:	Piece/Pieces
Package Type	:	Reel&Box Packaging

The file is encrypted. Please fill in the following information to continue accessing it

0.8BTB-22P female double slot widened



Product Description

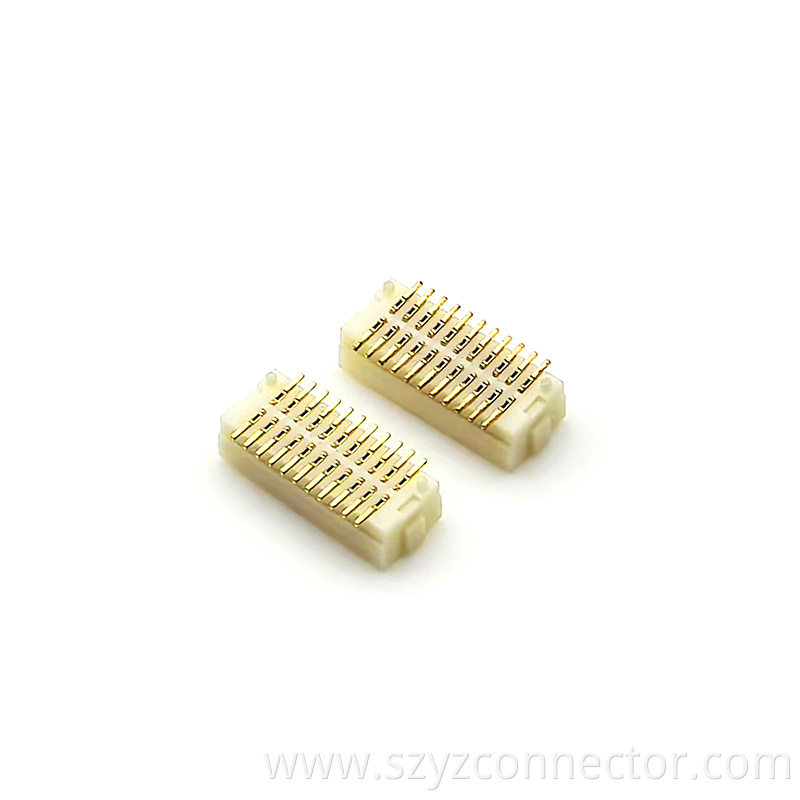

0.8mm Board to Board Connector Dual Row

The 0.8mm Board to Board Connector Dual Row by yztech is an ideal match for the same series male connectors, providing precise docking for inter-board connections in medium-density electronic devices. Its female head design and widened double slot structure perfectly fit the corresponding male, enhancing guiding and stability during docking, suitable for smart home control boards and small instruments. In terms of performance, these 0.8mm female BTB Connectors 22p reference board to board connector molex industrial standards to ensure reliability.

The shell, made of high-temperature resistant PBT (UL94 V0 certified), works stably at -40℃~125℃, meeting SMT Board to Board Connectors ivory requirements for surface mounting, adapting to automated production lines. Unlike board to board connector 90’s vertical layout, it uses straight insertion, ideal for planar wiring, and can work with board to board coaxial connector for high-frequency signals. Internal tin-plated phosphor bronze terminals have <9mΩ contact resistance and 500+ insertion cycles, ensuring long-term stability.

Whether for multi-layer PCB signal transmission or internal board docking, these board to board connetors 0.8mm stand out for precise fitting and reliability.
