1.27mm Pitch Ejector Header Connector

There are 4 products

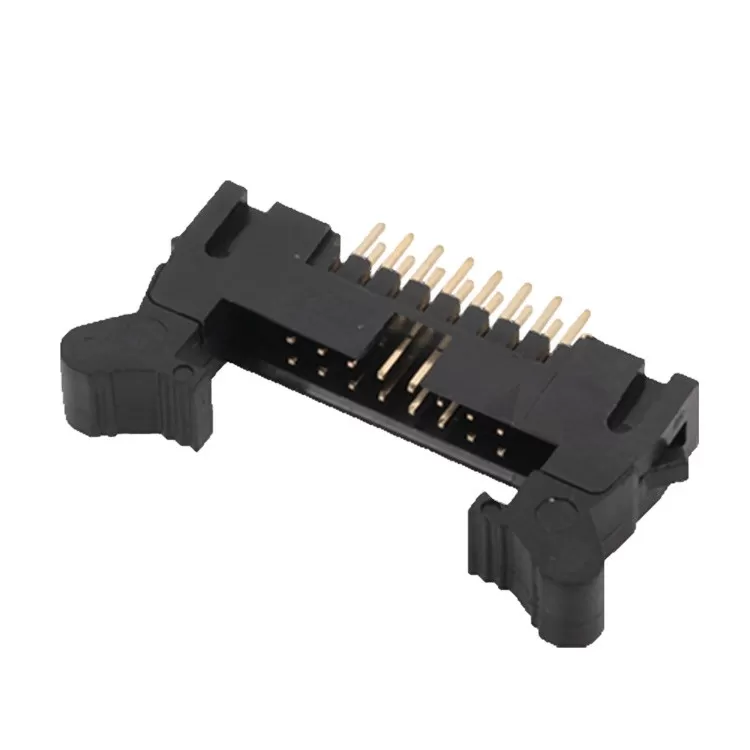

  • 1.27mm Pitch Ejector Header Connector SMT 50P

    1.27mm Pitch Ejector Header Connector SMT 50P

    Min. Order:1

    Model No:053073

    yztech’s meticulously developed 1.27mm Pitch Ejector Header Connector SMT 50P is a core component for achieving high-density and stable connections in precision electronic devices. As a high-performance model in the 1.27mm Pitch Ejector Header...

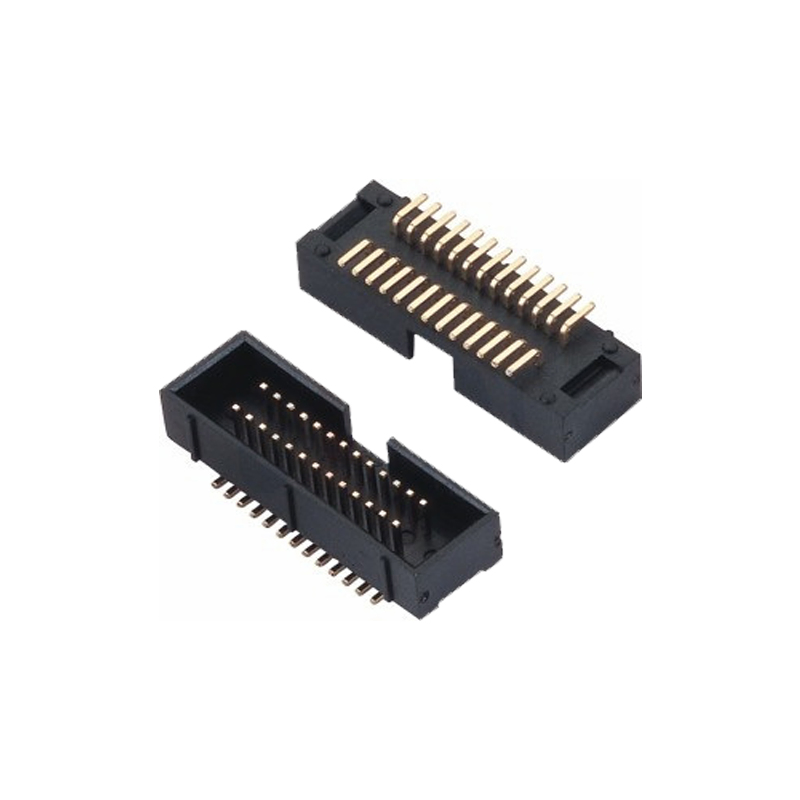

  • 1.27mm Pitch Ejector Header Straight 6P-80P

    1.27mm Pitch Ejector Header Straight 6P-80P

    Min. Order:1

    Model No:053072

    yztech’s 1.27mm Pitch Ejector Header Straight 6P-80P, with pin counts ranging from 6P to 80P, is the ideal choice for achieving flexible and efficient connections and convenient maintenance in electronic devices. As a main product of the 1.27mm...

  • 1.27mm ejector header RA pcb connector

    1.27mm ejector header RA pcb connector

    Min. Order:1

    Model No:053071

    yztech’s newly developed 1.27mm ejector header RA pcb connector is an excellent solution for efficient interconnection and quick maintenance in the compact spaces of electronic devices. As an innovative product in the 1.27mm Pitch Ejector Header...

  • 1.27mm Smt type Ejector Header

    1.27mm Smt type Ejector Header

    Min. Order:1

    Model No:053070

    yztech’s 1.27mm Smt type Ejector Header is an innovative solution for efficient connection and convenient maintenance of precision electronic devices. As a core product in the Smt type Ejector Header category, its standard 1.27mm pitch and...

1.27mm Pitch Ejector Header Connector
The 1.27mm Pitch Ejector Header Connector is a high - performance electronic connection component, delicately designed to bridge the gap between high - density integration and reliable, user - friendly operation. Its 1.27mm pitch strikes an optimal balance, allowing for a compact layout while ensuring easy handling and reduced risk of misalignment. The integrated ejector mechanism simplifies the installation and removal of mating connectors, enabling quick component replacement and maintenance.
Product Philosophy
Please listen to us
Our product philosophy for 1.27mm Pitch Ejector Header Connectors is "Balanced Precision, Effortless Connectivity". This concept emphasizes our dedication to creating connection solutions that blend precise engineering with user - centric design. By focusing on the perfect balance between compactness, reliability, and ease of use, we aim to provide products that not only meet the technical demands of modern electronics but also simplify the assembly and maintenance processes, bringing greater efficiency and convenience to our customers across various industries.
Original concept

Product Features

Efficient pop-up function

The built - in ejector mechanism enables one - handed, effortless insertion and extraction of connectors, reducing assembly time by up to 40% and minimizing the risk of component damage.

Reliable electrical performance

High - conductivity copper pins with nickel - gold plating ensure low contact resistance (less than 25mΩ) and stable signal transmission, even in high - frequency applications.

Dual process compatibility

Compatible with both surface - mount technology (SMT) and through - hole technology, providing flexibility in PCB manufacturing and assembly processes.
Application Scenarios
  • 01
    Server and Storage Devices
    allowing for rapid installation and removal of modules, reducing downtime and improving maintenance efficiency.
  • 02
    Industrial automation enterprises
    Used in our PLC equipment, even on highly vibrating production lines, the connection remains stable, reducing equipment failure rates by 30%. It has never experienced connection failures in high - temperature and high - humidity industrial environments.
  • 03
    Automotive electronics supplier
    It can operate stably in the complex automotive electrical environment with excellent anti - interference capabilities, providing reliable support for our automotive electronic systems. Passing the AEC - Q200 certification gives us full confidence in the product.
  • 04
    Consumer electronics manufacturers
    Applied in laptops, it facilitates hardware upgrades for users, significantly enhancing product competitiveness. The high - speed data transmission capabilities fully unleash the performance of gaming laptops.
FAQ
Can the connector withstand mechanical shock during transportation?
The product is designed to withstand a certain degree of mechanical shock, but protective measures are still required during transportation. It is recommended to wrap the connector with buffer foam or sponge, put it in a sturdy packaging box, and fill it with buffer materials to prevent shaking and collision.
Does the connector need additional insulation treatment in high-voltage applications?
Generally, the insulation performance of the standard model can meet the requirements of conventional voltages. If it is used in a high-voltage environment (exceeding 500V), it is recommended to install an insulating sleeve outside the connector or choose a special model with high-voltage insulation treatment. At the same time, ensure good grounding.
How to choose the appropriate stack height for different application scenarios?
Choose according to the internal space and connection requirements of the equipment. For equipment with compact space, a smaller stack height (such as 2.5mm - 5mm) can be selected; for scenarios where multiple modules need to be installed and space permits, a larger stack height (such as 10mm - 15mm) can be selected to ensure that the installation of the connector does not affect the operation of other components.
What are the precautions when using the connector in an automotive environment?
The automotive environment has large temperature changes and frequent vibrations. It is necessary to ensure that the connector has good temperature resistance and vibration resistance. When installing, fix it firmly to avoid loosening. At the same time, pay attention to the waterproof treatment of the connector to prevent rainwater or moisture from invading and affecting the performance.
