1.27mm Box Header Connector

There are 10 products

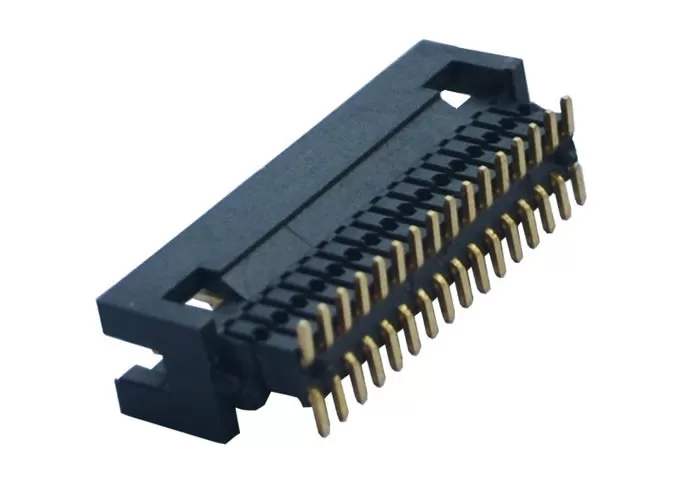

  • 1.27mm Box header Connector Straight 26p

    1.27mm Box header Connector Straight 26p

    Brand:YZTECH

    Min. Order:1000 Piece/Pieces

    Model No:1103.1S/B-2*13P-H5,7-0085-F-04

    Transportation:Ocean,Land,Air,Express,Others

    Place of Origin:China

    Meet the YZTECH 1.27mm Box Header Connector—a compact powerhouse engineered for precision and reliability in tight PCB spaces. This 26-pin male header connector features a space-saving dual-row design and a straightforward straight-plug...

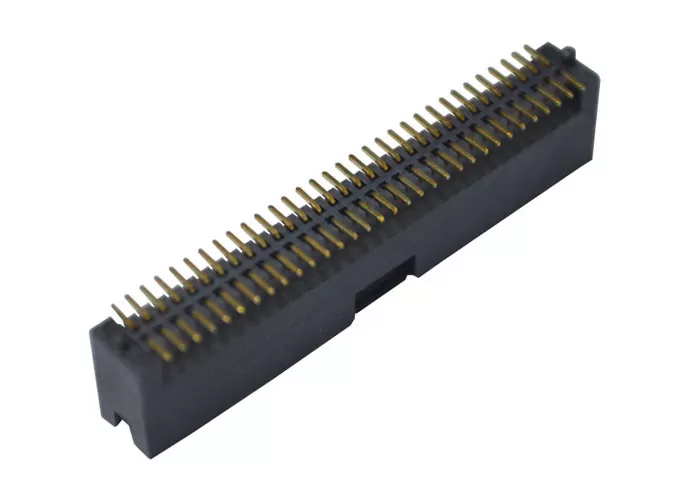

  • 1.27mm Pitch Box header Connector Straight

    1.27mm Pitch Box header Connector Straight

    Brand:YZTECH

    Min. Order:1000 Piece/Pieces

    Model No:1103.1S/B-2DL-2*2*40P-H7,2-0170-F1-04

    Transportation:Ocean,Land,Air,Express,Others

    Place of Origin:China

    YZTECH’s 1.27mm pitch box header connector straight, belonging to its Box header Connector series, solves multi-industry electronic connectivity problems. It has 2 rows (40P/row, 80P total) and a bent design, optimizing PCB space—an edge over some...

  • 1.27mm Pitch Box header Connector Straight H5.4mm

    1.27mm Pitch Box header Connector Straight H5.4mm

    Brand:YZTECH

    Min. Order:1000 Piece/Pieces

    Model No:1103.1S/B-2*5P-H5,4-0063-04

    Transportation:Ocean,Land,Air,Express,Others

    Place of Origin:China

    YZTECH produced a high-performance box header connector engineered to address sophisticated interconnection requirements in advanced electronic systems. The 1.27mm pitch box header connector configuration with dual-row 10-position (5×2) arrangement...

  • 1.27mm Pitch Box Header Straight H4.9mm

    1.27mm Pitch Box Header Straight H4.9mm

    Min. Order:1

    Model No:052953

    yztech’s meticulously crafted 1.27mm Pitch Box Header Straight Stack is an efficient solution for multi-layer interconnection and compact layout of electronic devices. As a core product of the box header family, its standard 1.27mm pitch and...

  • 1.27mm Pitch Box Header SMT H5.7mm

    1.27mm Pitch Box Header SMT H5.7mm

    Min. Order:1

    Model No:052955

    yztech’s meticulously crafted 1.27mm Pitch Box Header SMT H5.7mm is specially designed for electronic devices with strict requirements for spatial layout and signal transmission. As a featured product in the smt box header series, the standard...

  • 1.27mm Pitch Heighten Type Box Header SMT

    1.27mm Pitch Heighten Type Box Header SMT

    Min. Order:1

    Model No:052954

    yztech’s 1.27mm Pitch Heighten Type Box Header SMT is a professional solution designed for high-density electronic devices with special height requirements. As an innovative model in the smt box header category, its standard 1.27mm pitch and...

  • 1.27mm Pitch Box Header Staight Stack

    1.27mm Pitch Box Header Staight Stack

    Min. Order:1

    Model No:052952

    yztech’s meticulously crafted 1.27mm Pitch Box Header Straight Stack is an efficient solution for multi-layer interconnection and compact layout of electronic devices. As a core product of the box header family, its standard 1.27mm pitch and...

  • 1.27mm Pitch Box Header Staight Stack Pin

    1.27mm Pitch Box Header Staight Stack Pin

    Min. Order:1

    Model No:052951

    yztech’s 1.27mm Pitch Box Header Staight Stack Pin is the ideal choice for optimizing the spatial layout of electronic devices and achieving efficient interconnection of multi-layer circuits. As an innovative product in the box header series, its...

  • High Quality 1.27mm straight dip box header

    High Quality 1.27mm straight dip box header

    Min. Order:1

    Model No:052950

    yztech’s High Quality 1.27mm straight dip box header is a solid guarantee for stable connections in electronic devices. As a classic model in the box header series, its standard 1.27mm pitch and straight dip design precisely meet the conventional...

  • 1.27mm pitch SMT box header connector Samtec

    1.27mm pitch SMT box header connector Samtec

    Min. Order:1

    Model No:052949

    The 1.27mm pitch SMT box header connector Samtec jointly launched by yztech is a revolutionary solution for high-precision electronic device interconnection. As a benchmark product in the smt box header category, its standard 1.27mm pitch and...

1.27mm Box Header Connector
The 1.27mm Box Header Connector is a reliable and versatile electronic connection solution. With its 1.27mm pitch, it offers a balance between connection density and ease of handling, making it suitable for a wide variety of electronic devices. The box - shaped structure provides excellent mechanical protection for the pins, safeguarding them from damage during assembly and operation. Constructed with high - quality copper pins for superior conductivity and durable engineering plastic housing for enhanced strength, this connector ensures stable electrical performance and long - term reliability.
Product Features
Durable box shaped construction
The box - shaped structure offers enhanced mechanical stability, withstanding a lateral force of up to 12N per pin without deformation, protecting the pins effectively.
Excellent conductivity
High - purity copper pins with a thick gold - nickel plating ensure low contact resistance (less than 20mΩ), enabling stable signal transmission even in high - frequency applications up to 300MHz.
Multiple specifications to choose from
Available in pin counts ranging from 4 to 64 pins, single - row and double - row configurations, and various stack heights from 3.5mm to 12.0mm to meet different circuit design needs.
Strict quality control
Each connector undergoes 100% electrical testing, visual inspection, and mechanical strength testing to ensure zero - defect products and reliable performance.
Product Philosophy
Please listen to us
Our product philosophy for 1.27mm Box Header Connector is "Solid Connection, Trusted Quality". This concept emphasizes our commitment to providing connection solutions that are not only reliable and stable but also trustworthy. We believe that a solid connection is the foundation of electronic device performance. By constantly improving product quality, optimizing design, and enhancing manufacturing processes, we aim to be the reliable partner for customers in various industries, helping them build high - quality electronic products and systems with confidence.
Original concept
WHAT A CLIENT SAY?
Steve
Enterprise Manager
In automotive electronic systems, it can well adapt to the complex electrical environment, ensuring the stable operation of automotive electronic devices.
Eddie
Testing equipment manufacturer
Used in our testing equipment, it ensures the precision and stability of connections, making test results more accurate and reliable.
Johnson
Medical instrument R&D personnel
Its precise and stable signal transmission is crucial for our medical equipment, helping us improve the accuracy of diagnostic devices. It is an indispensable connection component.
FAQ
How to choose the right pin count for my specific circuit design?
Determine according to the number and functions of signals that the circuit needs to connect, as well as potential future expansion requirements. It is generally recommended to reserve 10% - 15% of spare pins for future upgrades. If unsure, you can provide the circuit schematic to our technical team for professional selection advice.
What should I do if the connector is difficult to insert or remove?
First, check whether the mating connector is compatible and whether the pins are bent, oxidized, or blocked by foreign objects. If the pins are bent, carefully correct them with precision tweezers. If there is oxidation or foreign objects, clean the pin surface with a special cleaner to ensure the connection part is clean.
Can the color of the connector housing be customized?
Customization is available. Customers need to provide specific color requirements (such as Pantone color numbers) and the quantity to be customized. We can produce housings in different colors to meet personalized design needs.
Is the connector resistant to electromagnetic interference?
The standard model has basic anti - electromagnetic interference capabilities. If the application scenario has strong electromagnetic interference, you can choose models with metal shielding covers. Also, ensure good grounding of the equipment and optimize PCB wiring to enhance anti - interference effects.
