2.0mm Box Header Connector

There are 14 products

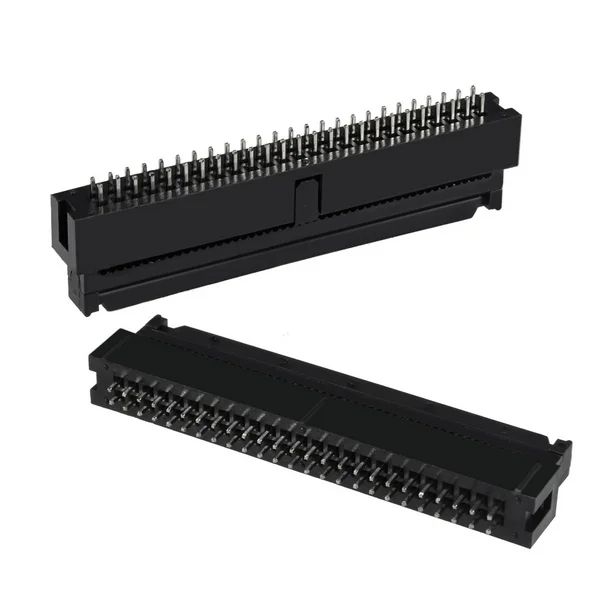

  • 2.0mm Pitch Box header Connector Straight

    2.0mm Pitch Box header Connector Straight

    Brand:YZTECH

    Min. Order:1000 Piece/Pieces

    Model No:1103.2S-DL-30P-0122-F-06

    Transportation:Ocean,Land,Express,Air,Others

    Place of Origin:China

    YZTECH 2.0mm pitch box header connector is designed for high-density interconnection requirements in modern PCB applications. It features a dual-row straight plug design with 15 pins per row, providing reliable and space-efficient board mounting....

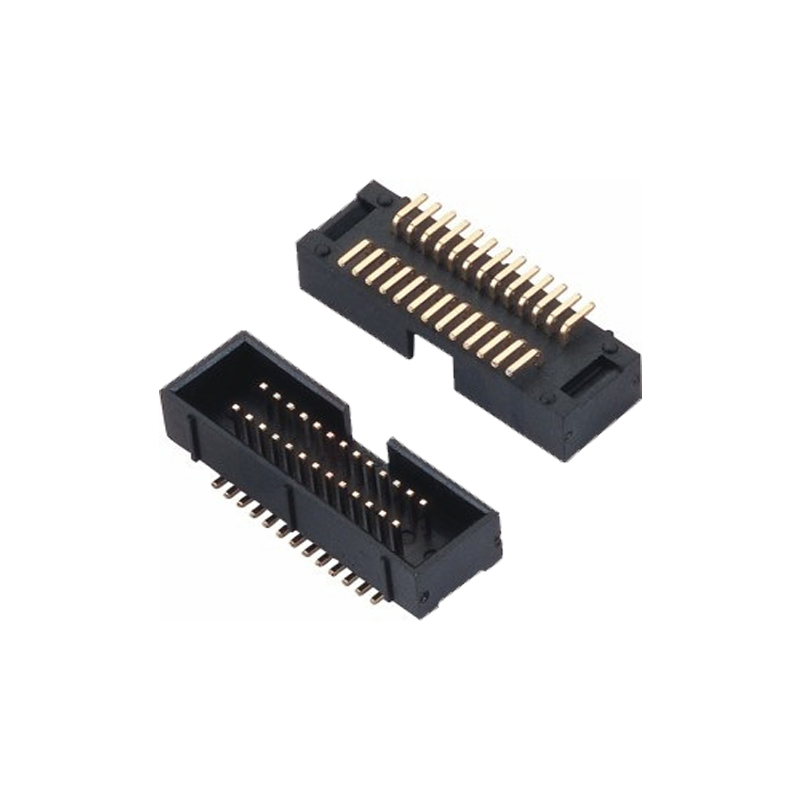

  • 2.0mm Pitch Box header Connector SMT H4.8mm

    2.0mm Pitch Box header Connector SMT H4.8mm

    Brand:YZTECH

    Min. Order:1000 Piece/Pieces

    Model No:1103.2SMD-50P-0083-F3-05

    Transportation:Ocean,Land,Express,Air,Others

    Place of Origin:China

    YZTECH's 0.8mm Pitch Dual Row SMT Pin Header provides a high-density, reliable interconnection solution for modern PCB designs requiring compact form factors. Its vertical mount design and dual-row 25-pin configuration make it ideal for...

  • 2.0mm Pitch Box header Connector Right Angle

    2.0mm Pitch Box header Connector Right Angle

    Brand:YZTECH

    Min. Order:1000 Piece/Pieces

    Model No:1103.2R-2*25P-H5.6-F-04

    Transportation:Ocean,Land,Air,Express,Others

    Place of Origin:China

    YZTECH 2.0mm Pitch Box Header Connector is engineered for robust connectivity in compact PCB designs. Featuring a dual-row layout with 25 positions per row, this right-angle male header connector offers space-saving integration and reliable signal...

  • 2.0mm Pitch Box header Connector SMT

    2.0mm Pitch Box header Connector SMT

    Brand:YZTECH

    Min. Order:1000 Piece/Pieces

    Model No:1103.2SMD-12P-0090-F15-04

    Transportation:Ocean,Land,Air,Express,Others

    Place of Origin:China

    Engineered for high-performance PCB applications, the YZTECH 2.0mm Pitch Box Header Connector offers a compact and reliable interconnection solution. Featuring a dual-row, 6-pin-per-row rectangular male design with vertical mounting orientation,...

  • 2.0mm Pitch Box header Connector Straight 50P

    2.0mm Pitch Box header Connector Straight 50P

    Brand:YZTECH

    Min. Order:1000 Piece/Pieces

    Model No:1103.2S-50P-0075-F3-06

    Transportation:Ocean,Land,Air,Express,Others

    Place of Origin:China

    The YZTECH 2.0mm Pitch 50-Position Box Header is a dual-row, male box header connector engineered for high-density PCB integration where space is at a premium. Its straight plug design ensures a low-profile and secure vertical mating with...

  • 2.0mm Pitch Box header Connector SMT 20P

    2.0mm Pitch Box header Connector SMT 20P

    Brand:YZTECH

    Min. Order:1000 Piece/Pieces

    Model No:1103.2SMD-20P-0090-F-04

    Transportation:Ocean,Land,Air,Express,Others

    Place of Origin:China

    YZTECH 2.0mm Pitch Box Header Connector SMT 20P is a dual-row, male-termination component engineered for high-density PCB applications. Featuring a vertical mount orientation and rectangular interface, this box header connector supports efficient...

  • 2.0mm Pitch Box header Connector Right Angle 30P

    2.0mm Pitch Box header Connector Right Angle 30P

    Brand:YZTECH

    Min. Order:1000 Piece/Pieces

    Model No:1103.2R-30P-0145-F-04

    Transportation:Ocean,Land,Air,Express,Others

    Place of Origin:China

    YZTECH's 2.0mm pitch box header connector delivers a compact and reliable high-density interconnection solution for modern PCB applications. This dual-row male connector features 30 positions with precision bending plug design that ensures perfect...

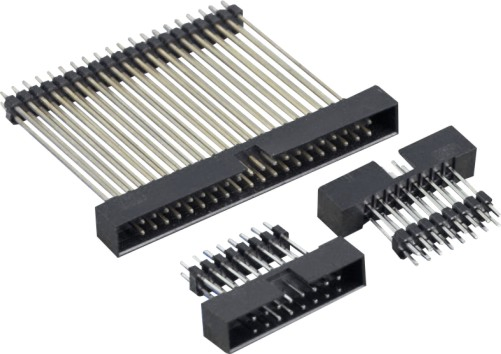

  • 2.0mm Pitch Box Header Straight Add Pin

    2.0mm Pitch Box Header Straight Add Pin

    Min. Order:1

    Model No:052961

    yztech’s innovatively developed 2.0mm Pitch Box Header Straight Add Pin is an excellent solution for flexible expansion and efficient connection of electronic devices. As an upgraded product in the box header series, its standard 2.0mm pitch and...

  • 2.0mm Pitch Box Header Straight H4.8mm

    2.0mm Pitch Box Header Straight H4.8mm

    Min. Order:1

    Model No:052960

    yztech’s 2.0mm Pitch Box Header Straight H4.8mm, with a height of 4.8mm, is specially designed for the connection needs of compact electronic devices. As a practical product in the box header series, its standard 2.0mm pitch and 4.8mm height design...

  • 2.0mm Pitch Box Header DIP H6.35

    2.0mm Pitch Box Header DIP H6.35

    Min. Order:1

    Model No:052959

    yztech’s meticulously developed 2.0mm Pitch Box Header DIP H6.35 is an excellent choice for achieving stable connections and efficient signal transmission in electronic devices. As a core product of the box header family, its standard 2.0mm pitch...

  • 2.0mm Pitch Box Header Straight H5.7mm

    2.0mm Pitch Box Header Straight H5.7mm

    Min. Order:1

    Model No:052958

    yztech’s 2.0mm Pitch Box Header Straight H5.7mm, with a height of 5.7mm, is specially designed to solve the wiring challenges in the three-dimensional space of electronic devices. As a featured product in the box header series, its standard 2.0mm...

  • 2.00mm ph box header type pcb connector

    2.00mm ph box header type pcb connector

    Min. Order:1

    Model No:052957

    yztech’s newly developed 2.00mm ph box header type pcb connector is an ideal solution for achieving stable and efficient connections in electronic devices. As a core product of the box header series, its standard 2.00mm pitch design precisely meets...

  • 2.00mm ph press-fit connector with

    2.00mm ph press-fit connector with

    Min. Order:1

    Model No:052956

    yztech’s 2.00mm ph press-fit connector is an innovative choice for fast and reliable connections in electronic devices. As an important member of the box header product family, its standard 2.00mm pitch and press-fit design can precisely adapt to...

  • 2.0mm Pitch Box Header Right Angle Add

    2.0mm Pitch Box Header Right Angle Add

    Min. Order:1

    Model No:052962

    yztech’s 2.0mm Pitch Box Header Right Angle Add is an innovative solution for complex circuit layouts and space limitations. As a versatile model in the box header series, its standard 2.0mm pitch and right-angle add-pin design precisely meet the...

2.0mm Box Header Connector
The 2.0mm Box Header Connector is a reliable and efficient electronic connection solution. Its 2.0mm pitch strikes an ideal balance between connection density and operational convenience, making it suitable for a wide array of electronic devices. The distinctive box - shaped structure offers robust mechanical protection to the pins, safeguarding them from damage during installation and operation. Crafted with high - purity copper pins for excellent conductivity and high - strength engineering plastic housing for enhanced durability, this connector guarantees stable electrical perfrmance and long - term reliability.
Product Features
Long plug-in life
Adopting a special wear-resistant coating and elastic structure design, it has been tested to withstand over 5000 insertions and removals without poor contact.
Low insertion and extraction force design
Optimize pin shape and tolerance fit, with insertion and extraction force controlled at 8-12N.
Good signal integrity
Optimized for high - speed signal transmission, the signal loss is less than 3dB at a rate of 10Gbps, effectively reducing signal distortion.
Product Philosophy
Please listen to us
Our product philosophy for 2.0mm Box Header Connectors is "Connecting the Future with Reliability". This concept reflects our commitment to providing connection solutions that not only meet the current needs of the electronics industry but also anticipate future technological trends. We believe that reliable connections are the foundation for technological innovation and development. By constantly pursuing technological breakthroughs, improving product quality, and providing excellent customer service, we aim to be the reliable partner for customers worldwide, enabling them to create more advanced and intelligent electronic products and contribute to the progress of the electronics industry.
Original concept
WHAT A CLIENT SAY?
Edessa
Smart wearable device manufacturers
The 2.0mm Box Header Connector perfectly fits the design of our smartwatches. Its compact size saves internal space, and the stable connection greatly improves product quality.
Skye
Smart Home Designer
After being applied to smart home devices, the connections between devices are more stable. We have received positive user feedback, which effectively enhances the market competitiveness of our products.
Lao Ento
Aerospace research institutions
It meets our strict requirements for the high reliability and extreme environment adaptability of connectors and has performed outstandingly in multiple aerospace projects, providing strong support for scientific research work.
FAQ
How to determine the suitable pin count for my specific circuit design?
Determine by first counting the number of signal and power lines in the circuit, and also considering the need for functional module expansion. For example, when connecting multiple components such as sensors and communication modules, reserve 20% of spare pins. If unsure, send the circuit schematic and device function description to our technical email, and we will provide a selection plan within 48 hours.
What should I do if the connector is difficult to insert or remove?
First, check if the mating connector model matches and observe whether the pins are severely bent more than 90°. For slight bends, carefully correct them with anti - static pointed tweezers. If the pin surface is oxidized and blackened, wipe it with a dust - free cloth dipped in a special electronic cleaner, and try plugging and unplugging again after it dries.
Can I use this connector in a salt - fog environment?
The regular model is not suitable for salt - fog environments. It is recommended to choose the anti - corrosion version with silver plating passivation treatment, which can withstand 1,000 hours of salt - fog testing without corrosion. Apply protective oil regularly during use to prevent salt crystals from damaging the pins.
How to troubleshoot intermittent connection issues?
First, use a multimeter to detect whether the contact resistance fluctuates. If it is greater than 20mΩ, it is abnormal. Check whether there are any cold solders at the soldering points, which can be repaired by re - soldering. For plug - in connectors, check whether the clips are loose and replace the spring pieces if necessary.
